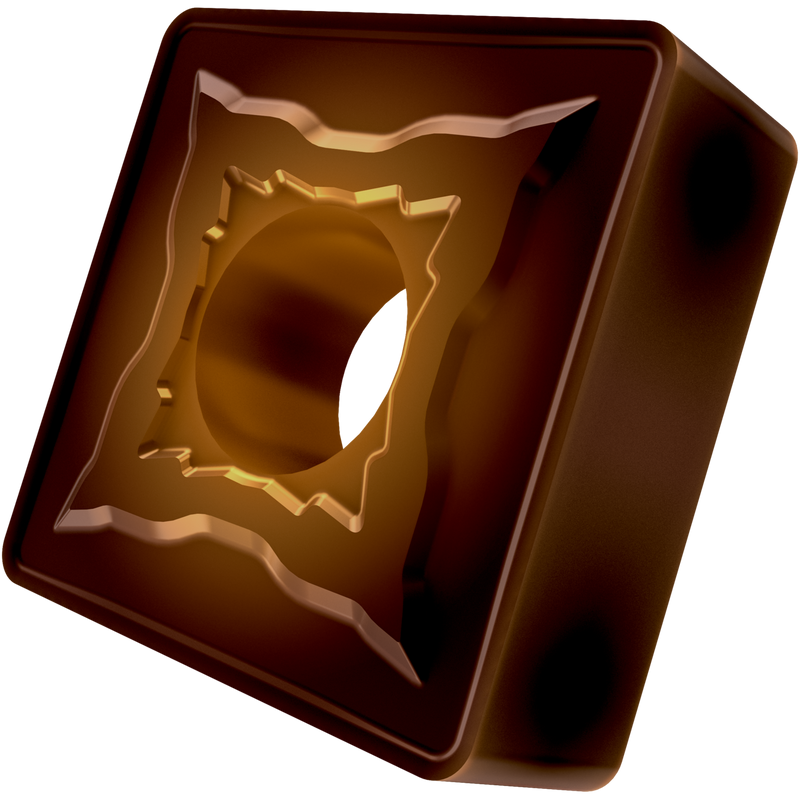

SNMG 432-NMR:T8430
SNMG 432-NMR:T8430

SNMG 432-NMR:T8430

UGC DOR7977133
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux NMR avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 432-NMR:T8430
Product Name (ISO)SNMG 120408E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number7977133
Product FamilyGroupe maritime permanent de l'OTAN
Insert Geometry
Insert DesignGRFMN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977133
EAN3603603817494
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
SNMG 432-NMR:T8430 — Line Drawing PDF Download
