TNMG 331-FM:T8430
TNMG 331-FM:T8430

TNMG 331-FM:T8430

UGC DOR7977136
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

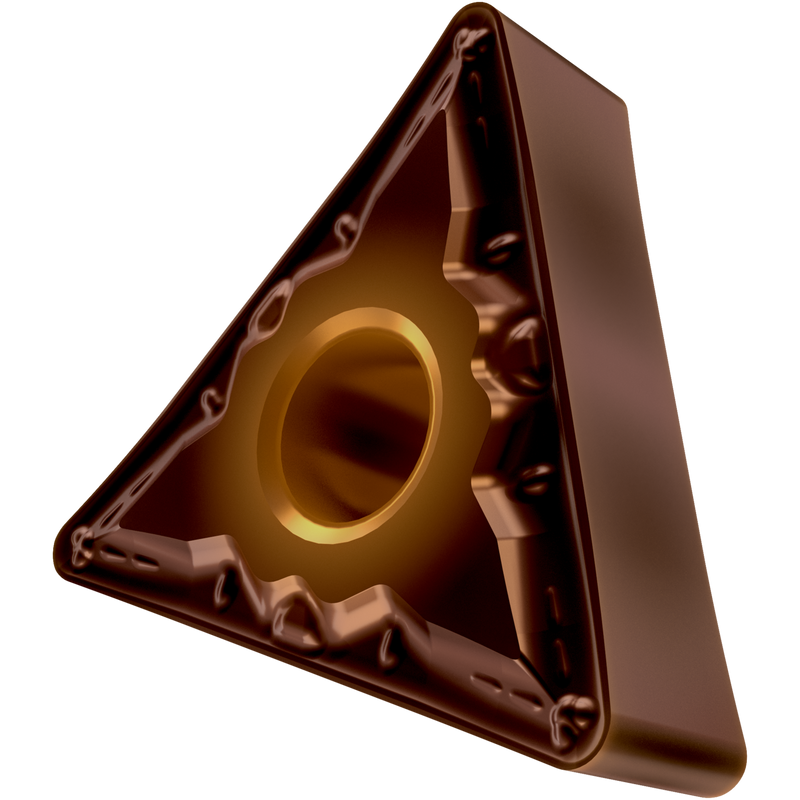

Plaquette négative double face à géométrie triangulaire avec un diamètre de cercle inscrit de 9,525mm, une épaisseur de 4,76mm, un rayon de pointe de 0,4mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage de finition et semi-finition des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 331-FM:T8430
Product Name (ISO)TNMG 160404E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977136
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977136
EAN3603603817524
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 331-FM:T8430 — Line Drawing PDF Download
