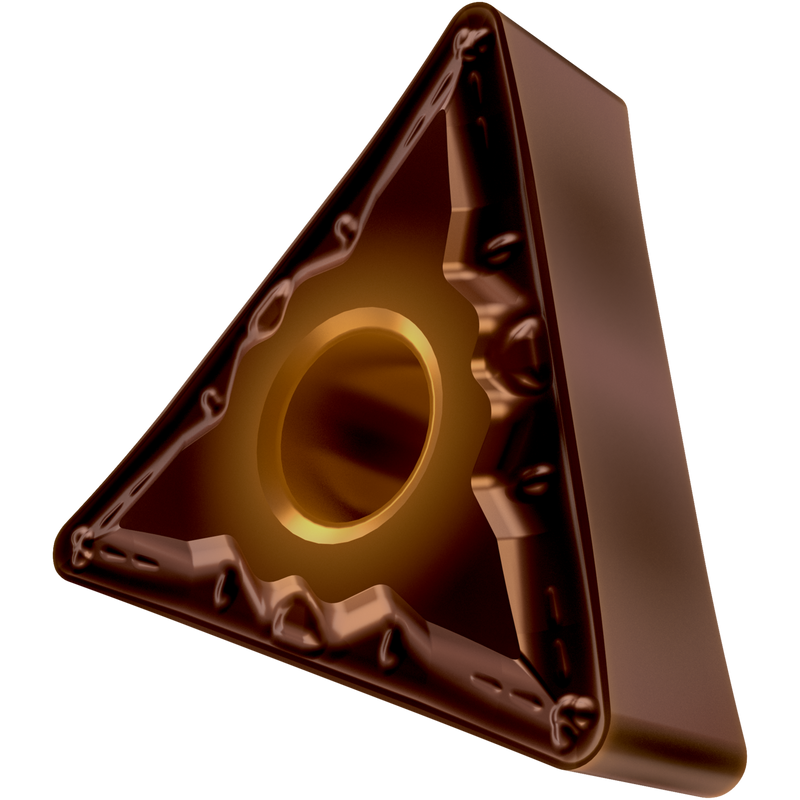

TNMG 332-FM:T8430
TNMG 332-FM:T8430

TNMG 332-FM:T8430

UGC DOR7977140
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur, rayon de bec de 0,8 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-FM:T8430
Product Name (ISO)TNMG 160408E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977140
Product FamilyTNMG
Insert Geometry
Insert DesignMTNG
Insert Shape Code (SC)T - angulaire 60° d'angle d'inclusion
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977140
EAN3603603817562
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
TNMG 332-FM:T8430 — Line Drawing PDF Download
