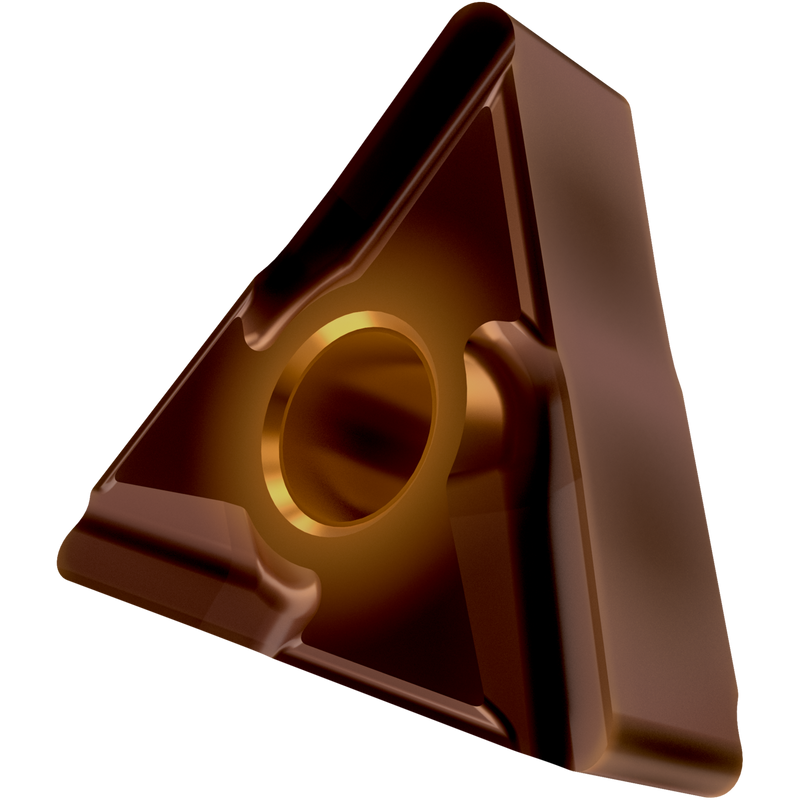

TNMG 332R-SI:T8430
TNMG 332R-SI:T8430

TNMG 332R-SI:T8430

UGC DOR7977145
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 CAD - $12.00 CAD
$12.00 CAD
$12.00 CAD - $12.00 CAD
$12.00 CAD

Vendu en lots de : 10

Plaquette négative double face, triangulaire avec un diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur, rayon de bec de 0,8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SI avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à lourd des aciers et des aciers inoxydables avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332R-SI:T8430
Product Name (ISO)TNMG 160408ER-SI:T8430
GradeT8430
Chipbreaker (CBMD)Oui
Product Number7977145
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977145
EAN3603603817616
File Type Download
TNMG 332R-SI:T8430 — Line Drawing PDF Download
