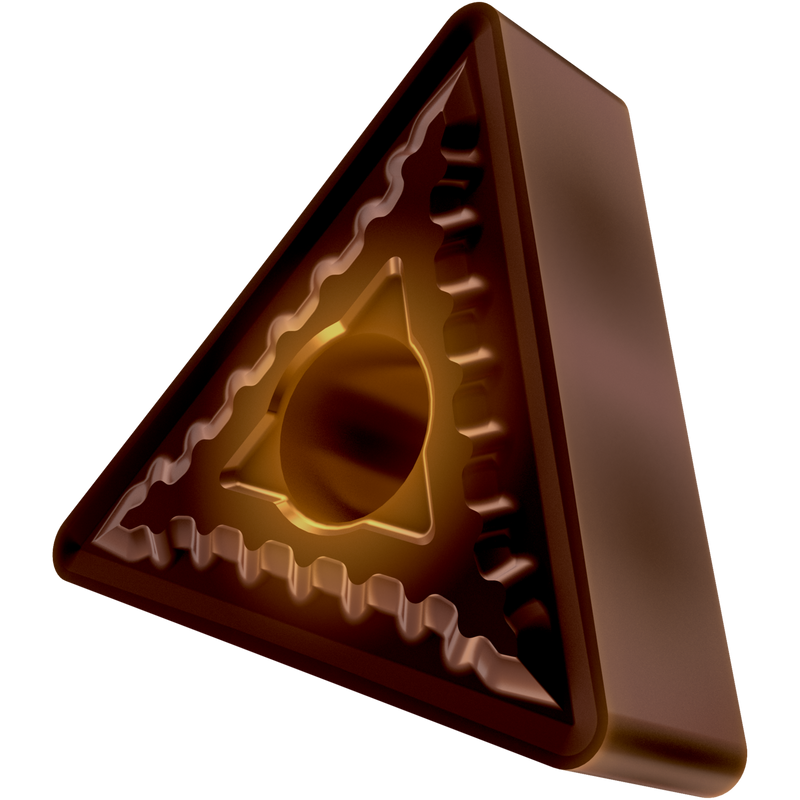

TNMG 432-SM:T8430
TNMG 432-SM:T8430

TNMG 432-SM:T8430

UGC DOR7977150
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

Plaquette négative double-face, triangulaire avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de pointe de 0,8 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 432-SM:T8430
Product Name (ISO)TNMG 220408E-SM:T8430
GradeT8430
Chipbreaker (CBMD)SM
Product Number7977150
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977150
EAN3603603817661
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
TNMG 432-SM:T8430 — Line Drawing PDF Download
