TNMM 433-NR2:T8430
TNMM 433-NR2:T8430

TNMM 433-NR2:T8430

UGC DOR7977151
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

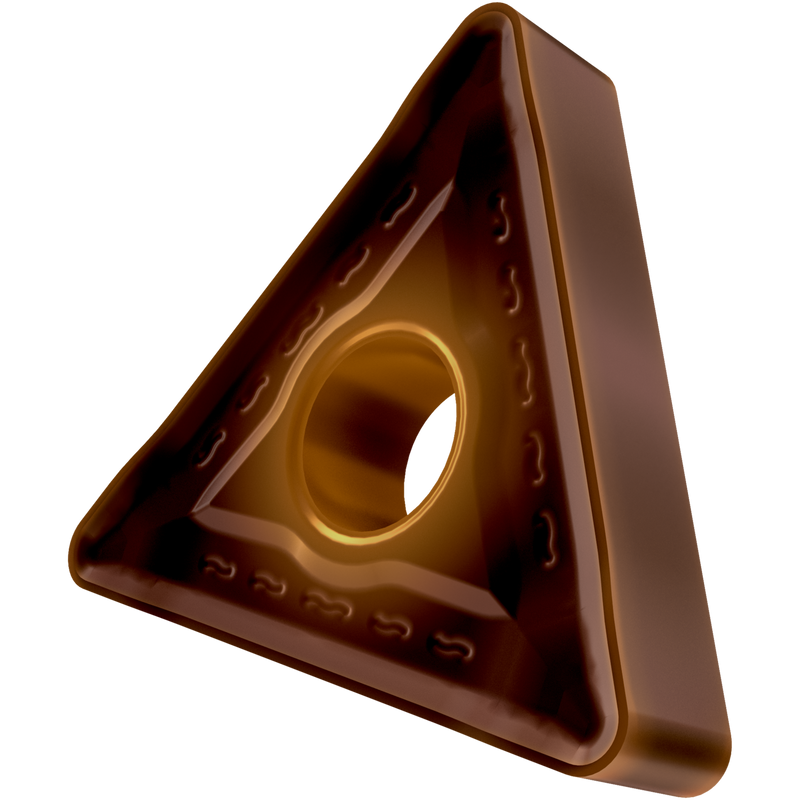

Plaquette négative double-face, triangulaire avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de bec de 1,2 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NR2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à très lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMM 433-NR2:T8430
Product Name (ISO)TNMM 220412E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977151
Product FamilyNTMM

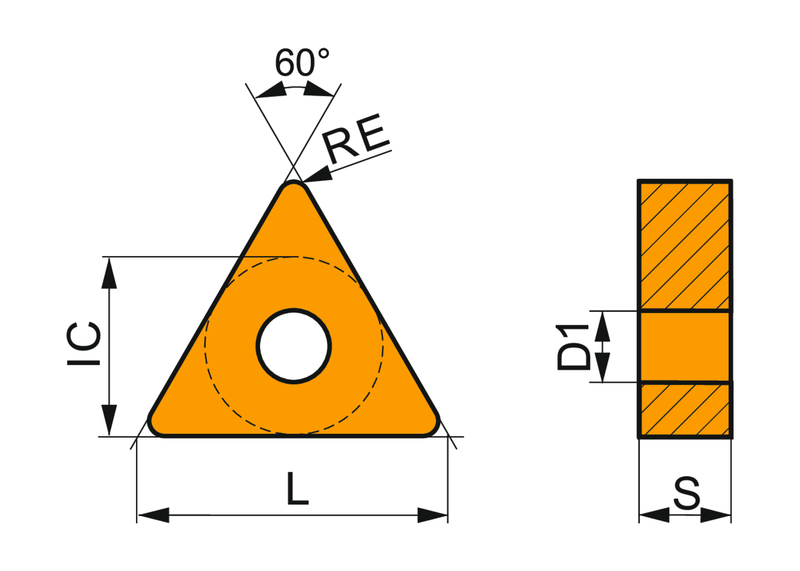

Insert Geometry
Insert DesignMTNT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977151
EAN3603603817678
File Type Download
TNMM 433-NR2:T8430 — Line Drawing PDF Download
