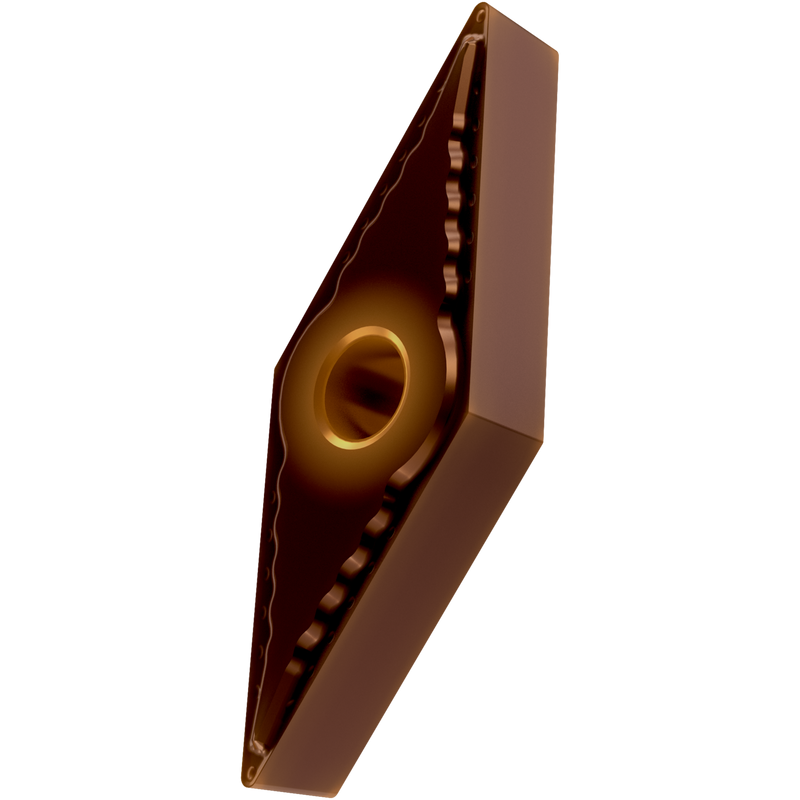

VNMG 331-FF:T8430
VNMG 331-FF:T8430

VNMG 331-FF:T8430

UGC DOR7977152
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 CAD - $20.79 CAD
$20.79 CAD
$20.79 CAD - $20.79 CAD
$20.79 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 35° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm, un rayon de bec de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux FF avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 331-FF:T8430
Product Name (ISO)VNMG 160404E-FF:T8430
GradeT8430
Chipbreaker (CBMD)FF
Product Number7977152
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle ouvert 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977152
EAN3603603817685
File Type Download
VNMG 331-FF:T8430 — Line Drawing PDF Download
