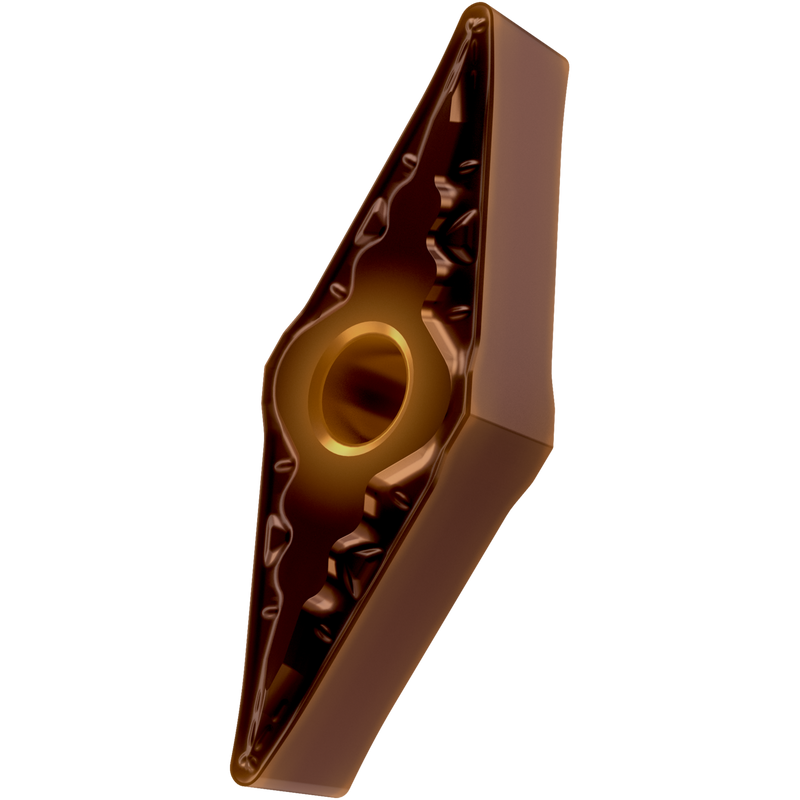

VNMG 332-FM:T8430
VNMG 332-FM:T8430

VNMG 332-FM:T8430

UGC DOR7977155
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 CAD - $20.79 CAD
$20.79 CAD
$20.79 CAD - $20.79 CAD
$20.79 CAD

Vendu en lots de : 10

Plaquette négative double face à 35° en forme de losange avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm, un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 332-FM:T8430
Product Name (ISO)VNMG 160408E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977155
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle d'ouverture de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977155
EAN3603603817715
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
VNMG 332-FM:T8430 — Line Drawing PDF Download
