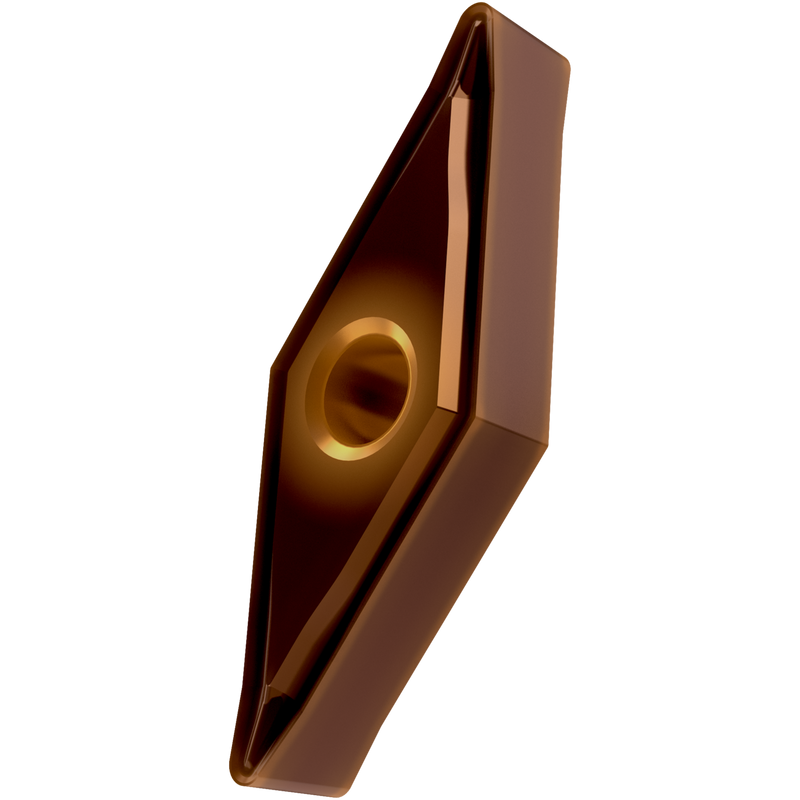

VNMG 332-NF:T8430
VNMG 332-NF:T8430

VNMG 332-NF:T8430

UGC DOR7977156
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 CAD - $20.79 CAD
$20.79 CAD
$20.79 CAD - $20.79 CAD
$20.79 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 35° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 4,76 mm, un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux NF avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 332-NF:T8430
Product Name (ISO)VNMG 160408E-NF:T8430
GradeT8430
Chipbreaker (CBMD)NF
Product Number7977156
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle inclus rhombique 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977156
EAN3603603817722
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
VNMG 332-NF:T8430 — Line Drawing PDF Download
