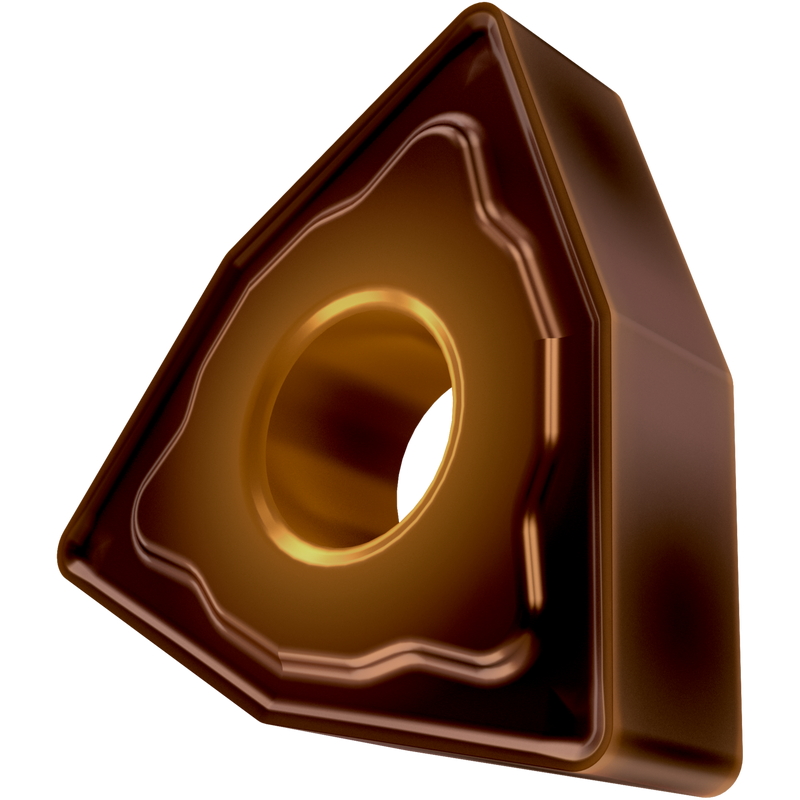

WNMG 332-NM:T8430
WNMG 332-NM:T8430

WNMG 332-NM:T8430

UGC DOR7977159
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.76 CAD - $11.76 CAD
$11.76 CAD
$11.76 CAD - $11.76 CAD
$11.76 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de pointe de 0,8 mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NM avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD, dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 332-NM:T8430
Product Name (ISO)WNMG 060408E-NM:T8430
GradeT8430
Chipbreaker (CBMD)NM
Product Number7977159
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977159
EAN3603603817753
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
WNMG 332-NM:T8430 — Line Drawing PDF Download
