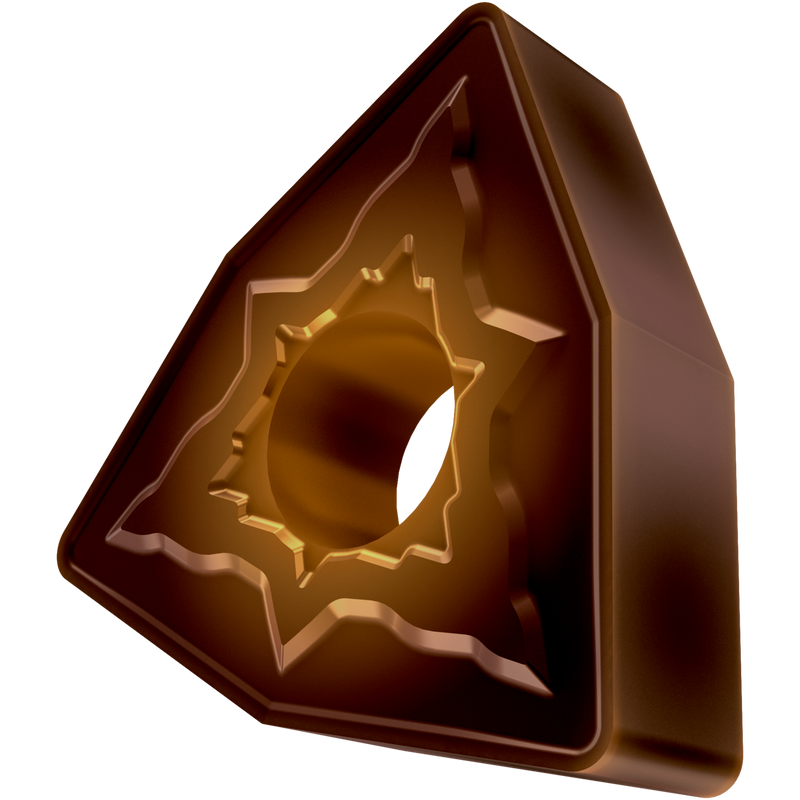

WNMG 432-NMR:T8430
WNMG 432-NMR:T8430

WNMG 432-NMR:T8430

UGC DOR7977170
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.26 CAD - $14.26 CAD
$14.26 CAD
$14.26 CAD - $14.26 CAD
$14.26 CAD

Vendu en lots de : 10

Plaquette négative double face, trigon de 80° avec un diamètre du cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, un rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NMR à arêtes vives, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD, dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage de finition à l'usinage lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 432-NMR:T8430
Product Name (ISO)WNMG 080408E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number7977170
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977170
EAN3603603817869
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
WNMG 432-NMR:T8430 — Line Drawing PDF Download
