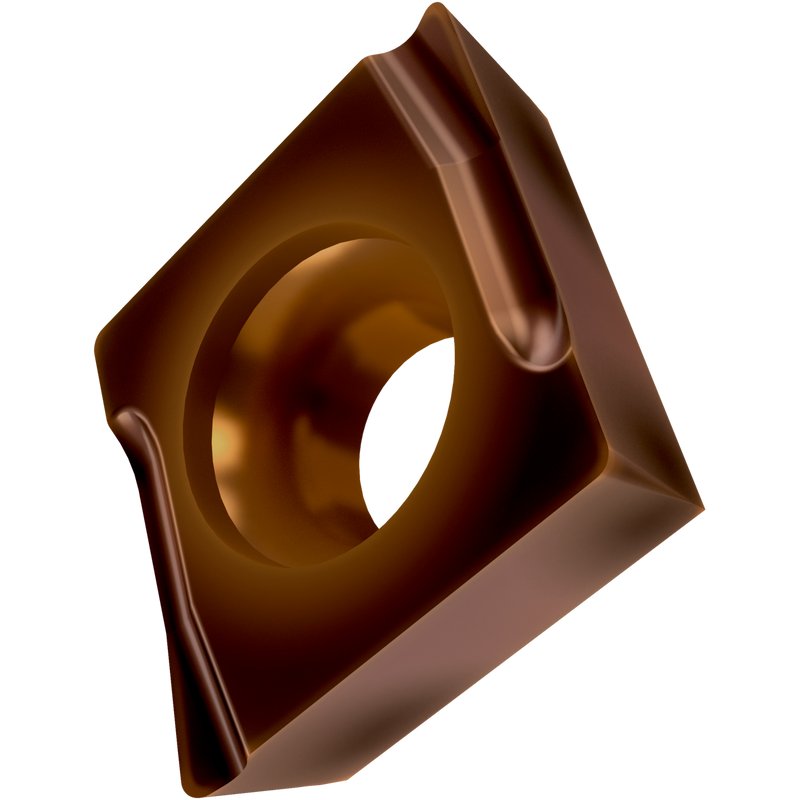

CCGT 21.50.5L-SI:T8430
CCGT 21.50.5L-SI:T8430

CCGT 21.50.5L-SI:T8430

UGC DOR7977179
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.71 CAD - $16.71 CAD
$16.71 CAD
$16.71 CAD - $16.71 CAD
$16.71 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 6,35mm, épaisseur 2,38mm, rayon de bec 0,2mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SI à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables avec un porte-outil à tourner à gauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 21.50.5L-SI:T8430
Product Name (ISO)CCGT 060202EL-SI:T8430
GradeT8430
Chipbreaker (CBMD)Oui
Product Number7977179
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977179
EAN3603603817906
File Type Download
CCGT 21.50.5L-SI:T8430 — Line Drawing PDF Download
