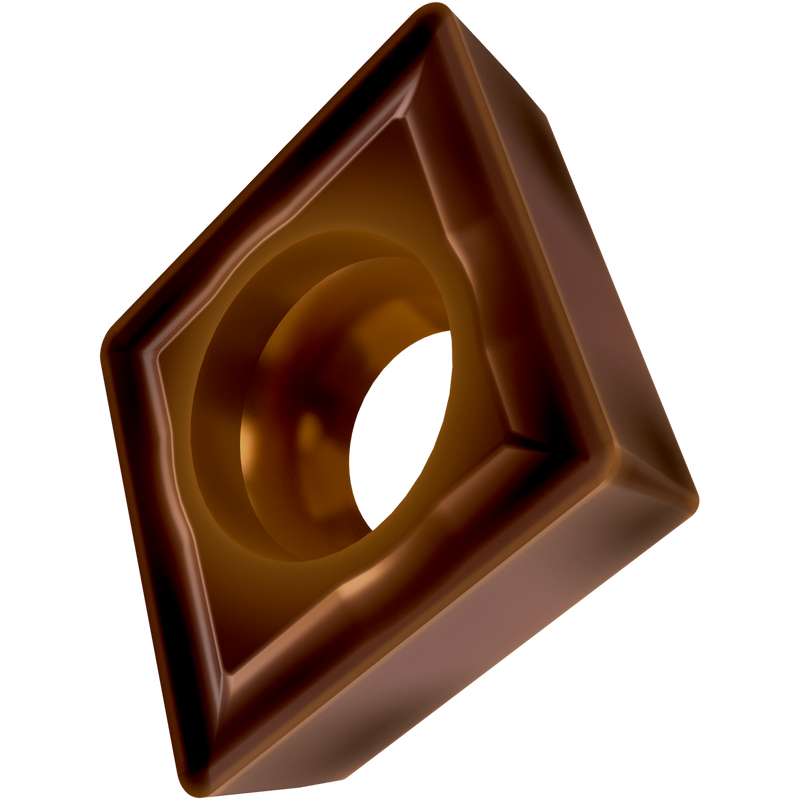

CCMT 21.50.5-NF2:T8430
CCMT 21.50.5-NF2:T8430

CCMT 21.50.5-NF2:T8430

UGC DOR7977186
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.33 CAD - $11.33 CAD
$11.33 CAD
$11.33 CAD - $11.33 CAD
$11.33 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale à 80° avec dépouille de 7°, diamètre du cercle inscrit de 6,35mm, épaisseur de 2,38mm, rayon de bec de 0,2mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M20-M35, pour l'usinage de finition à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-NF2:T8430
Product Name (ISO)CCMT 060202E-NF2:T8430
GradeT8430
Chipbreaker (CBMD)NF2
Product Number7977186
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977186
EAN3603603817975
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 21.50.5-NF2:T8430 — Line Drawing PDF Download
