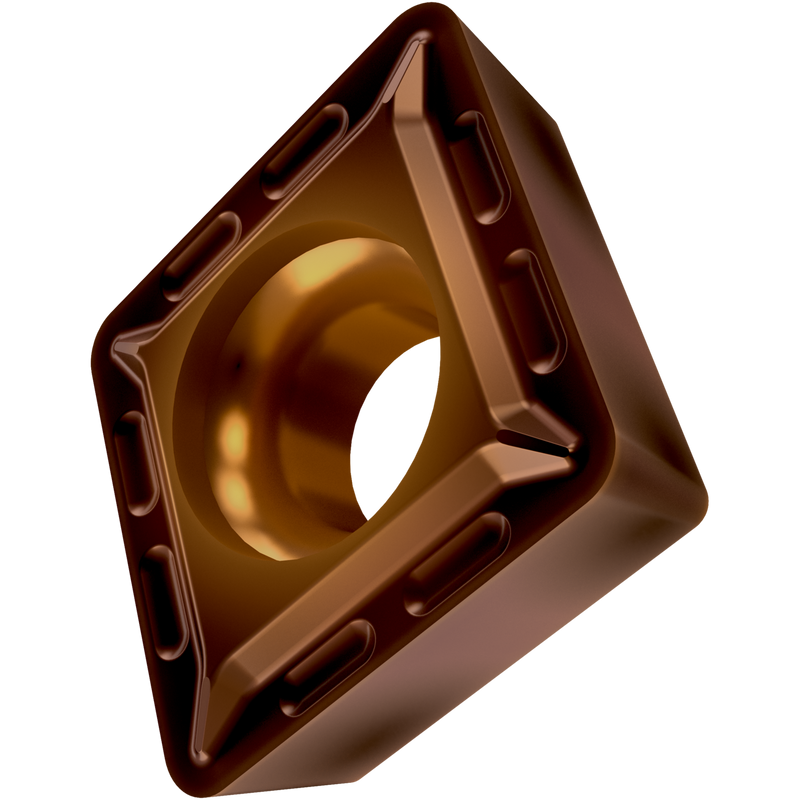

CCMT 2.520.5-FF2:T8430
CCMT 2.520.5-FF2:T8430

CCMT 2.520.5-FF2:T8430

UGC DOR7977190
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 7,94 mm, épaisseur de 3,18 mm, rayon de bec de 0,2 mm, précision d'indexation selon la classe de tolérance ISO M, brise-copeaux FF2 avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans la plage ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.520.5-FF2:T8430
Product Name (ISO)CCMT 080302E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977190
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977190
EAN3603603818019
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CCMT 2.520.5-FF2:T8430 — Line Drawing PDF Download
