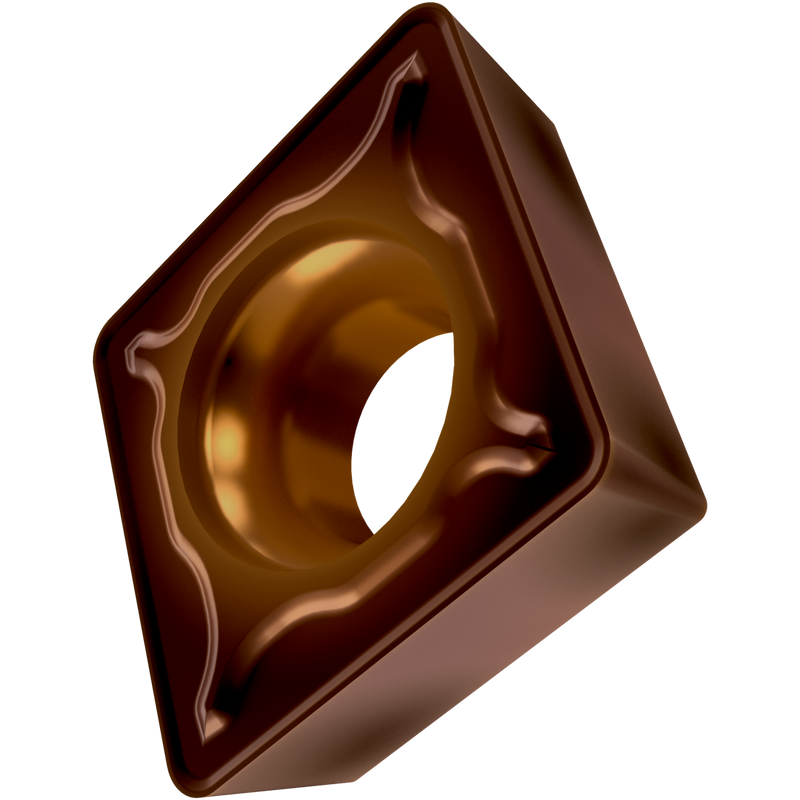

CCMT 2.522-FM2:T8430
CCMT 2.522-FM2:T8430

CCMT 2.522-FM2:T8430

UGC DOR7977194
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec un dépouille de 7°, diamètre du cercle inscrit de 7,94 mm, 3,18 mm d'épaisseur, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 - P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.522-FM2:T8430
Product Name (ISO)CCMT 080308E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977194
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle compris rhomboïde de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977194
EAN3603603818057
File Type Download
CCMT 2.522-FM2:T8430 — Line Drawing PDF Download
