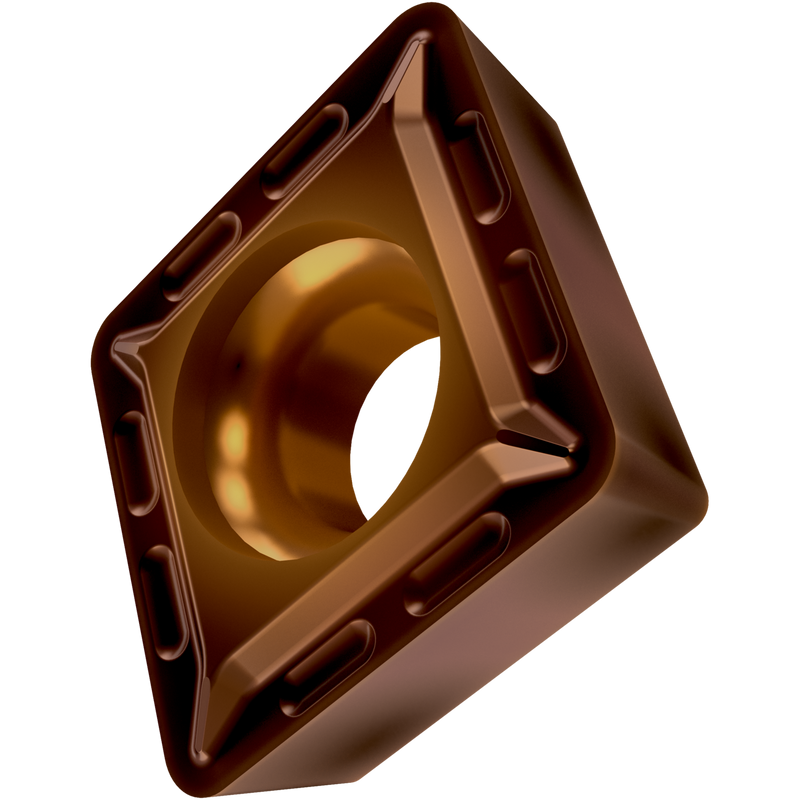

CCMT 32.51-FF2:T8430
CCMT 32.51-FF2:T8430

CCMT 32.51-FF2:T8430

UGC DOR7977196
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
10 In Stock - Motool Edmonton
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 80° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, épaisseur 3,97mm, rayon de bec 0,4mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FF2 à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.51-FF2:T8430
Product Name (ISO)CCMT 09T304E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977196
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977196
EAN3603603818071
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage possible
File Type Download
CCMT 32.51-FF2:T8430 — Line Drawing PDF Download
