CCMT 32.51-NF2:T8430
CCMT 32.51-NF2:T8430

CCMT 32.51-NF2:T8430

UGC DOR7977198
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

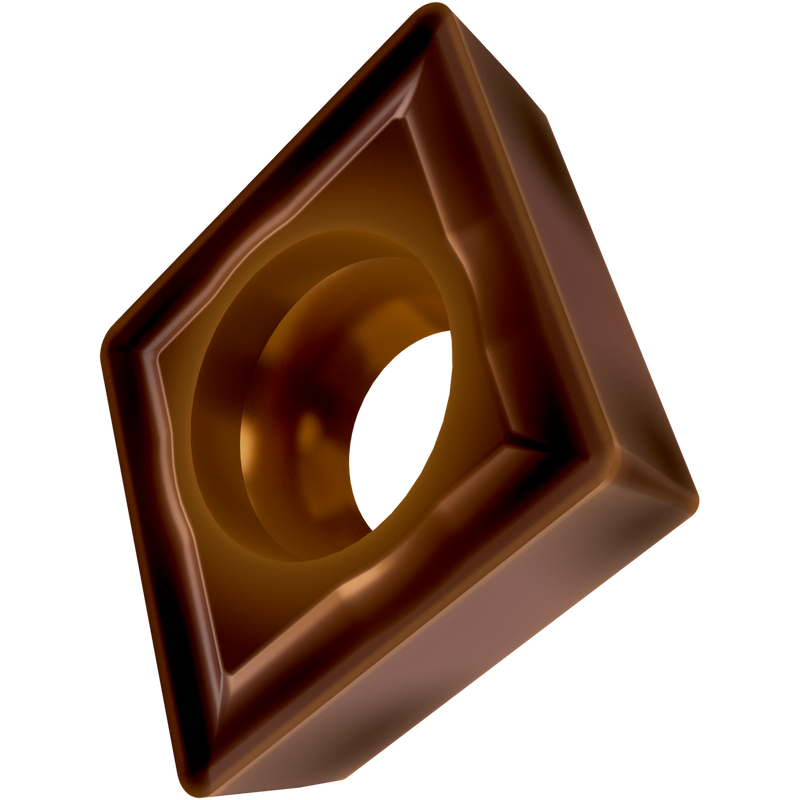

Plaquette positive simple face, rhomboïde 80° avec dépouille de 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NF2 à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO M20 - M35, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.51-NF2:T8430
Product Name (ISO)CCMT 09T304E-NF2:T8430
GradeT8430
Chipbreaker (CBMD)NF2
Product Number7977198
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle compris rhomboïde de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977198
EAN3603603818095
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 32.51-NF2:T8430 — Line Drawing PDF Download
