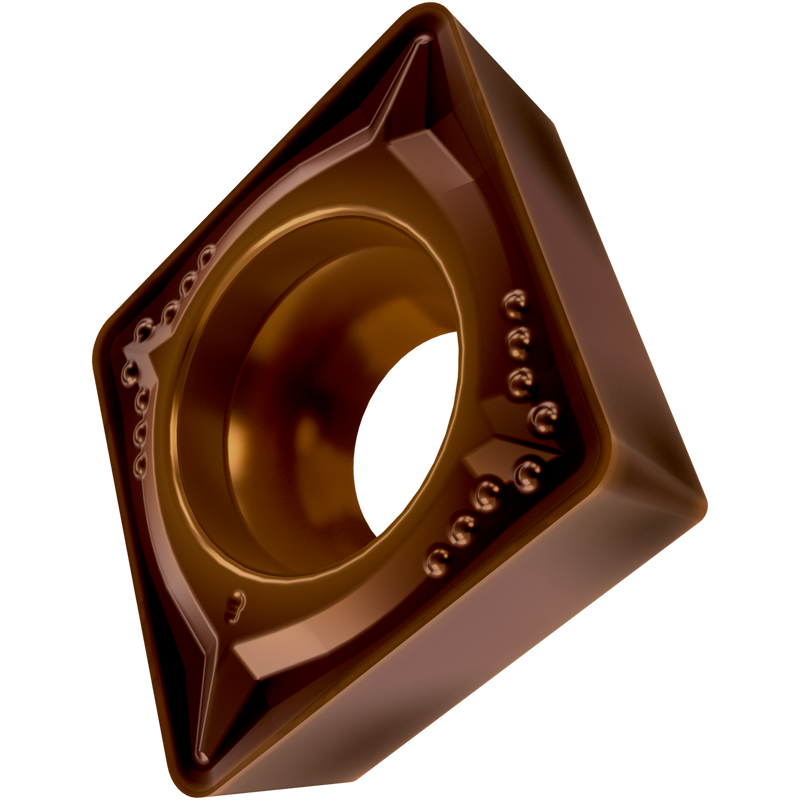

CCMT 32.52W-FM:T8430
CCMT 32.52W-FM:T8430

CCMT 32.52W-FM:T8430

UGC DOR7977202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, épaisseur 3,97mm, rayon de bec 0,8mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM avec design d'arête WIPER, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52W-FM:T8430
Product Name (ISO)CCMT 09T308W-FM:T8430
GradeT8430
Chipbreaker (CBMD)W-FM
Product Number7977202
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977202
EAN3603603818132
File Type Download
CCMT 32.52W-FM:T8430 — Line Drawing PDF Download
