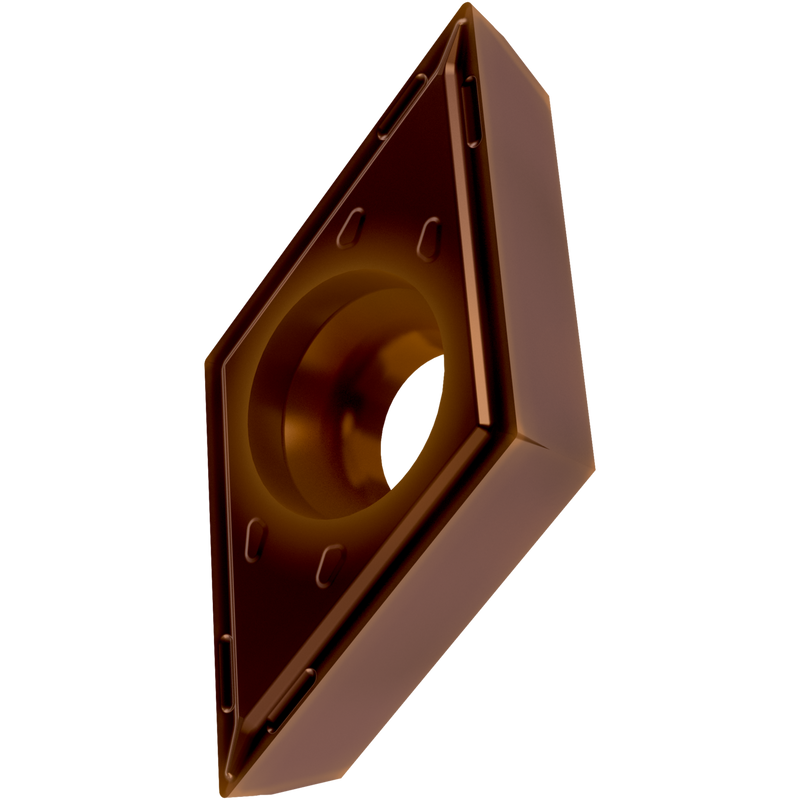

DCGT 32.50.5-FF2:T8430
DCGT 32.50.5-FF2:T8430

DCGT 32.50.5-FF2:T8430

UGC DOR7977206
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.11 CAD - $25.11 CAD
$25.11 CAD
$25.11 CAD - $25.11 CAD
$25.11 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, épaisseur 3,97mm, rayon de bec 0,2mm, précision de positionnement selon la classe de tolérance ISO G, brise-copeaux FF2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.50.5-FF2:T8430
Product Name (ISO)DCGT 11T302E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977206
Product FamilyDCGT
Insert Geometry
Insert DesignSDCG
Insert Shape Code (SC)D - angle inclus rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977206
EAN3603603818170
File Type Download
DCGT 32.50.5-FF2:T8430 — Line Drawing PDF Download
