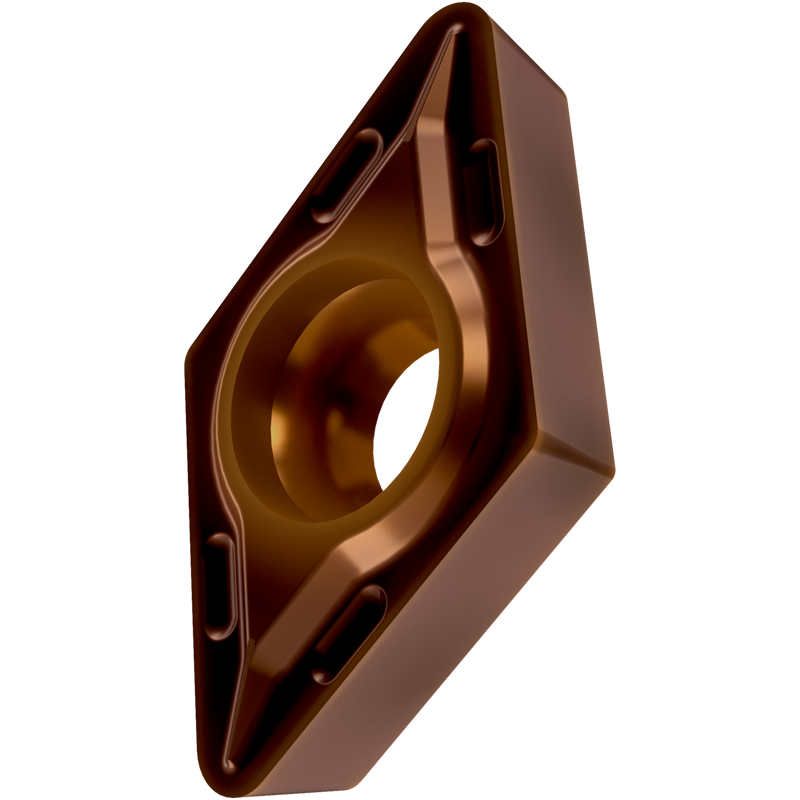

DCMT 21.50.5-FF2:T8430
DCMT 21.50.5-FF2:T8430

DCMT 21.50.5-FF2:T8430

UGC DOR7977211
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.57 CAD - $12.57 CAD
$12.57 CAD
$12.57 CAD - $12.57 CAD
$12.57 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde à 55° avec dépouille de 7°, diamètre du cercle inscrit de 6,35mm, épaisseur de 2,38mm, rayon de pointe de 0,2mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF2 à arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD, dans la plage ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.50.5-FF2:T8430
Product Name (ISO)DCMT 070202E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977211
Product FamilyTDGC
Insert Geometry
Insert DesignCMTD
Insert Shape Code (SC)D - angle inclus rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977211
EAN3603603818224
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
DCMT 21.50.5-FF2:T8430 — Line Drawing PDF Download
