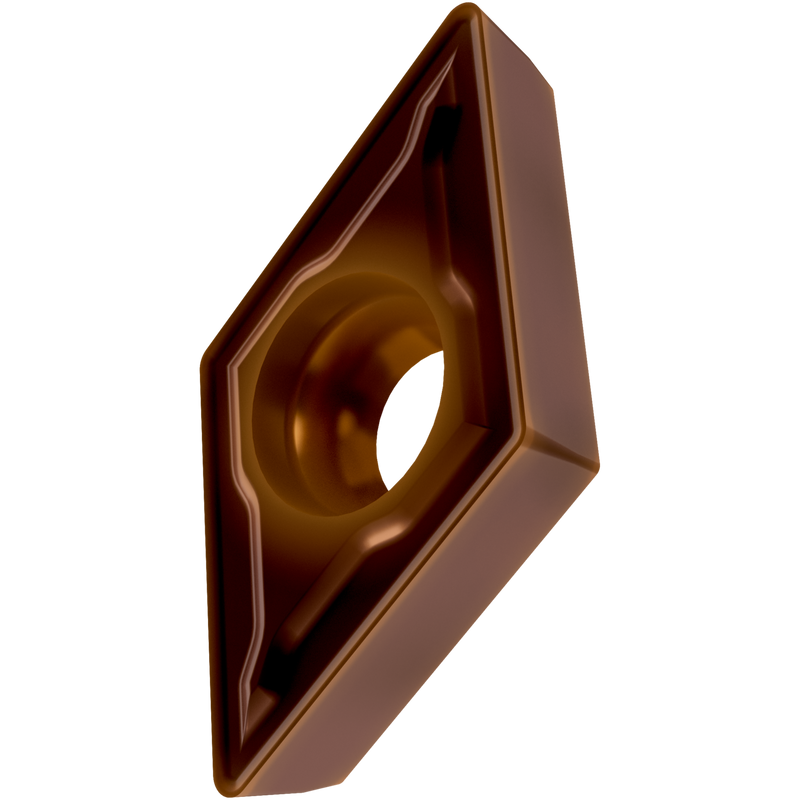

DCMT 21.51-FM2:T8430
DCMT 21.51-FM2:T8430

DCMT 21.51-FM2:T8430

UGC DOR7977214
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 6,35 mm, épaisseur 2,38 mm, rayon de bec 0,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.51-FM2:T8430
Product Name (ISO)DCMT 070204E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977214
Product FamilyDCMT
Insert Geometry
Insert DesignGTDC
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977214
EAN3603603818255
File Type Download
DCMT 21.51-FM2:T8430 — Line Drawing PDF Download
