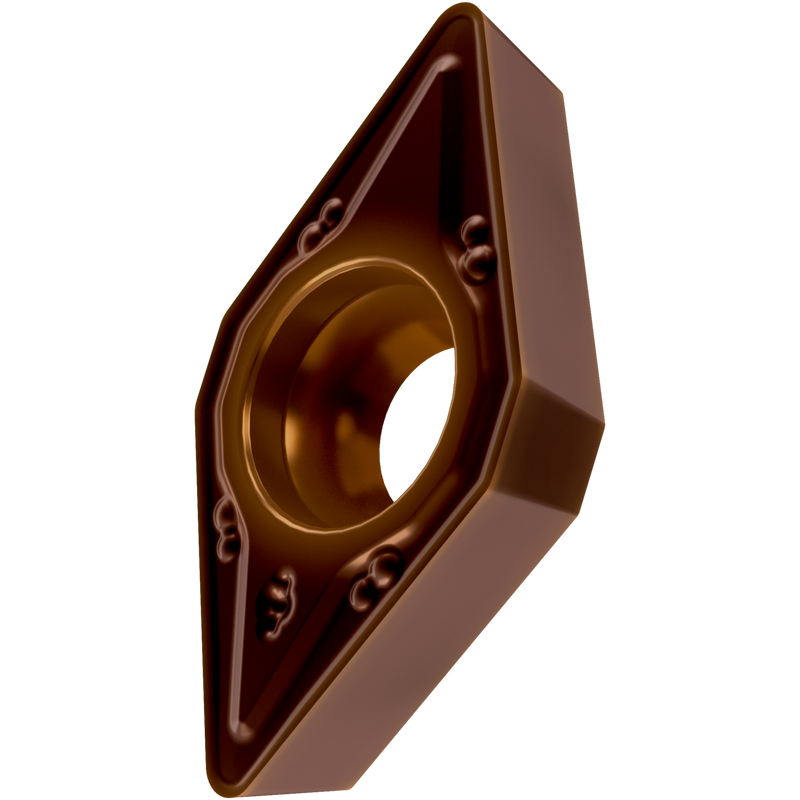

DCMT 32.51-RM:T8430
DCMT 32.51-RM:T8430

DCMT 32.51-RM:T8430

UGC DOR7977219
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, épaisseur 3,97mm, rayon de bec 0,4mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-RM:T8430
Product Name (ISO)DCMT 11T304E-RM:T8430
GradeT8430
Chipbreaker (CBMD)RM
Product Number7977219
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle compris de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977219
EAN3603603818309
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
DCMT 32.51-RM:T8430 — Line Drawing PDF Download
