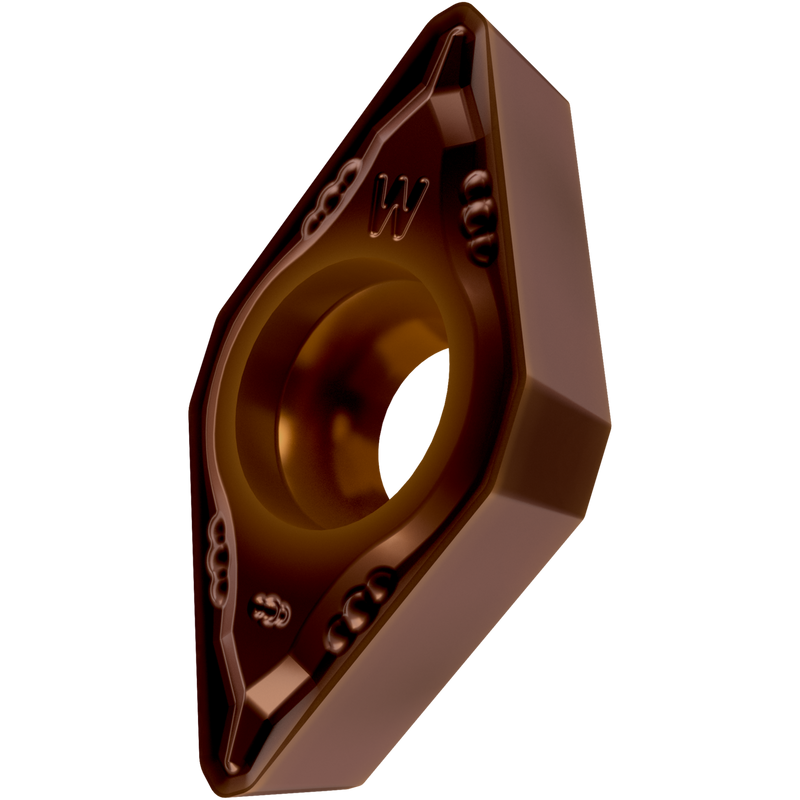

DCMX 32.51W-FM:T8430
DCMX 32.51W-FM:T8430

DCMX 32.51W-FM:T8430

UGC DOR7977226
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.90 CAD - $17.90 CAD
$17.90 CAD
$17.90 CAD - $17.90 CAD
$17.90 CAD

Vendu en lots de : 10

Plaquette de tournage positive de conception spéciale, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, épaisseur 3,97mm, rayon de bec 0,4mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec géométrie d'arête WIPER, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMX 32.51W-FM:T8430
Product Name (ISO)DCMX 11T304W-FM:T8430
GradeT8430
Chipbreaker (CBMD)W-FM
Product Number7977226
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle d'inclinaison rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977226
EAN3603603818378
File Type Download
DCMX 32.51W-FM:T8430 — Line Drawing PDF Download
