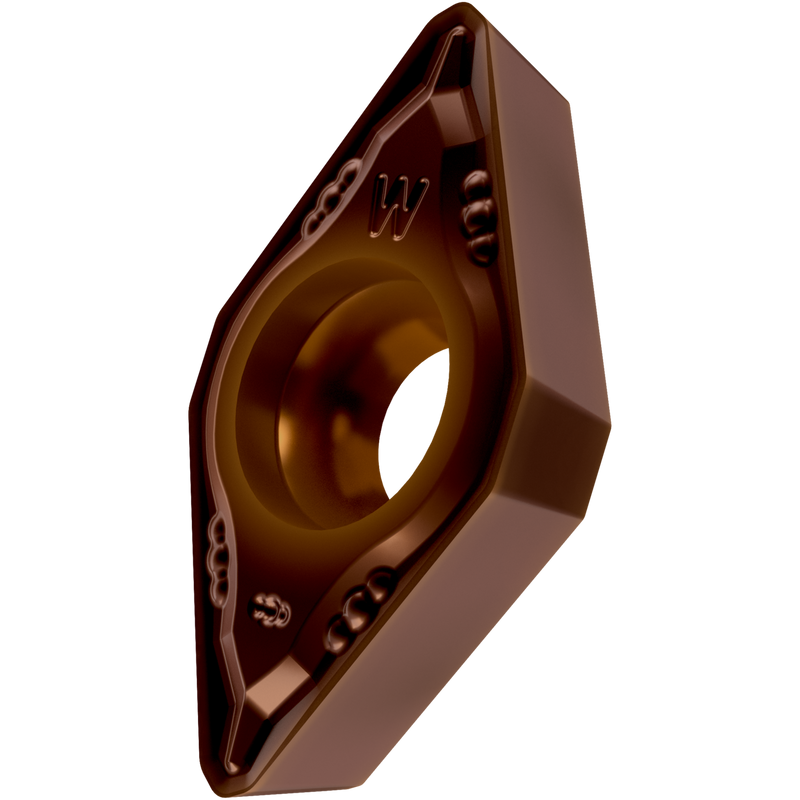

DCMX 32.52W-FM:T8430
DCMX 32.52W-FM:T8430

DCMX 32.52W-FM:T8430

UGC DOR7977227
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.90 CAD - $17.90 CAD
$17.90 CAD
$17.90 CAD - $17.90 CAD
$17.90 CAD

Vendu en lots de : 10

Plaquette positive à coupe spéciale, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de pointe de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec conception de bord WIPER, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMX 32.52W-FM:T8430
Product Name (ISO)DCMX 11T308W-FM:T8430
GradeT8430
Chipbreaker (CBMD)W-FM
Product Number7977227
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle aigu de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977227
EAN3603603818385
File Type Download
DCMX 32.52W-FM:T8430 — Line Drawing PDF Download
