ECMT 2.521-FM2:T8430
ECMT 2.521-FM2:T8430

ECMT 2.521-FM2:T8430

UGC DOR7977229
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.57 CAD - $12.57 CAD
$12.57 CAD
$12.57 CAD - $12.57 CAD
$12.57 CAD

Vendu en lots de : 10

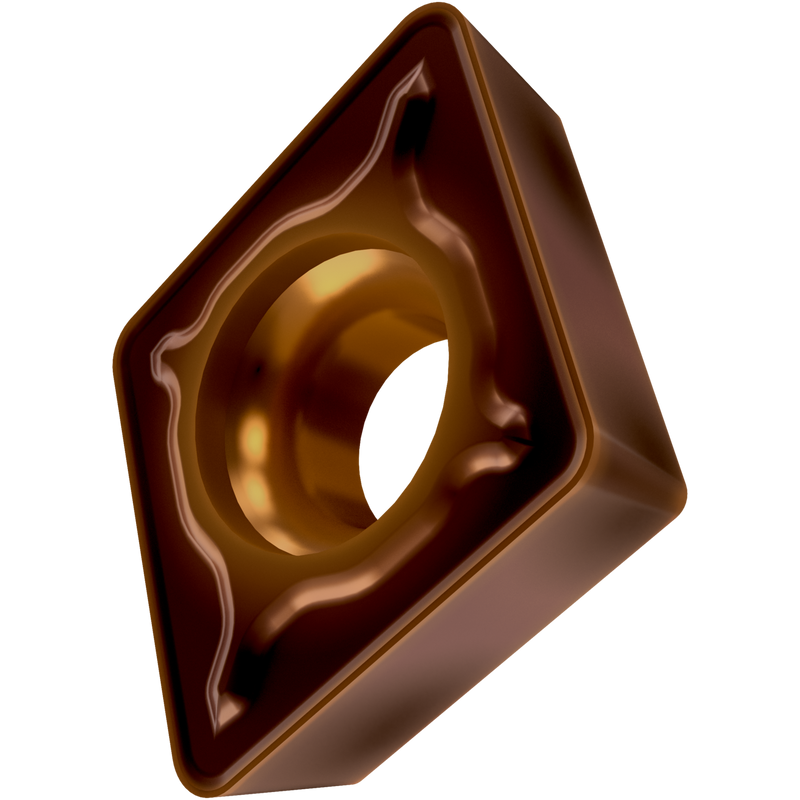

Plaquette positive simple face, rhomboïde à 75° avec dépouille de 7°, diamètre du cercle inscrit de 7,94mm, 3,18mm d'épaisseur, rayon de pointe de 0,4mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux FM2 à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 2.521-FM2:T8430
Product Name (ISO)ECMT 080304E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977229
Product FamilyCEMT

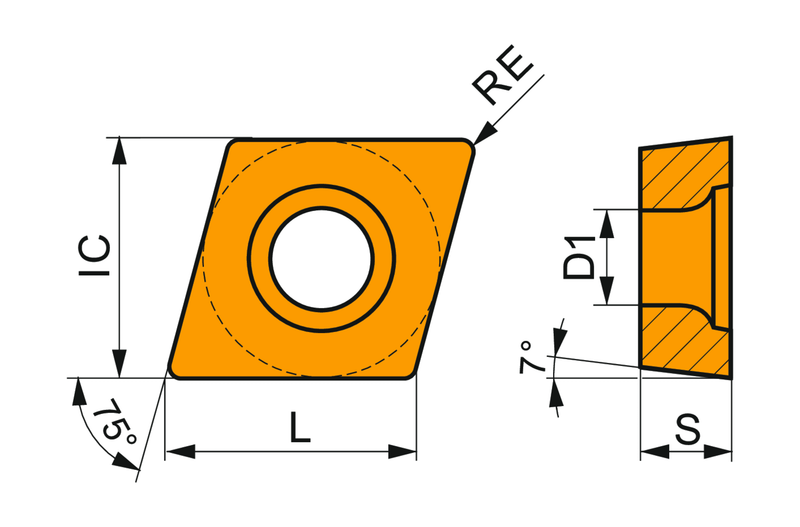

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)F - Rombique angle inclus 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977229
EAN3603603818408
File Type Download
ECMT 2.521-FM2:T8430 — Line Drawing PDF Download
