CECM 2.522-FM2:T8430
CECM 2.522-FM2:T8430

CECM 2.522-FM2:T8430

UGC DOR7977230
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.57 CAD - $12.57 CAD
$12.57 CAD
$12.57 CAD - $12.57 CAD
$12.57 CAD

Vendu en lots de : 10

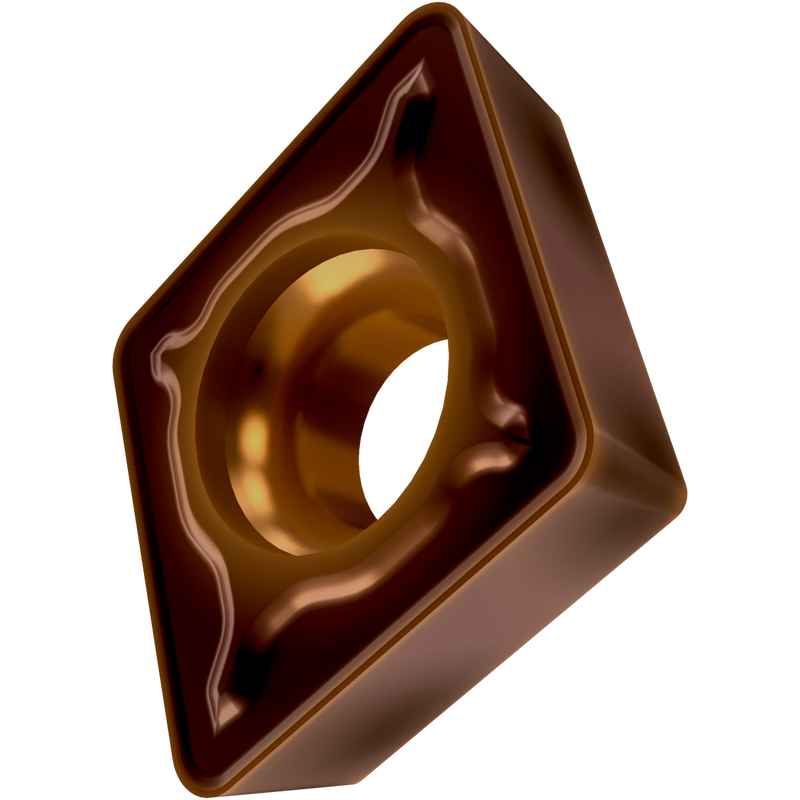

Plaquette positive simple face à 75° rhomboïde avec dépouille de 7°, diamètre du cercle inscrit de 7,94mm, épaisseur de 3,18mm, rayon de bec de 0,8mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMT 2.522-FM2:T8430
Product Name (ISO)CEMT 080308E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977230
Product FamilyCEMT

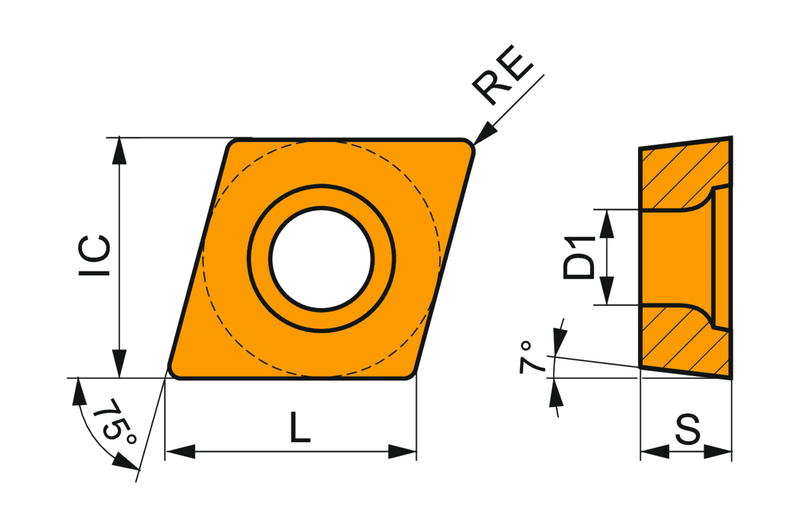

Insert Geometry
Insert DesignCEMT
Insert Shape Code (SC)F - losange, angle de 75° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977230
EAN3603603818415
File Type Download
CECM 2.522-FM2:T8430 — Line Drawing PDF Download
