RCMT 0602MOE-UR:T8430
RCMT 0602MOE-UR:T8430

RCMT 0602MOE-UR:T8430

UGC DOR7977232
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.26 CAD - $10.26 CAD
$10.26 CAD
$10.26 CAD - $10.26 CAD
$10.26 CAD

Vendu en lots de : 10

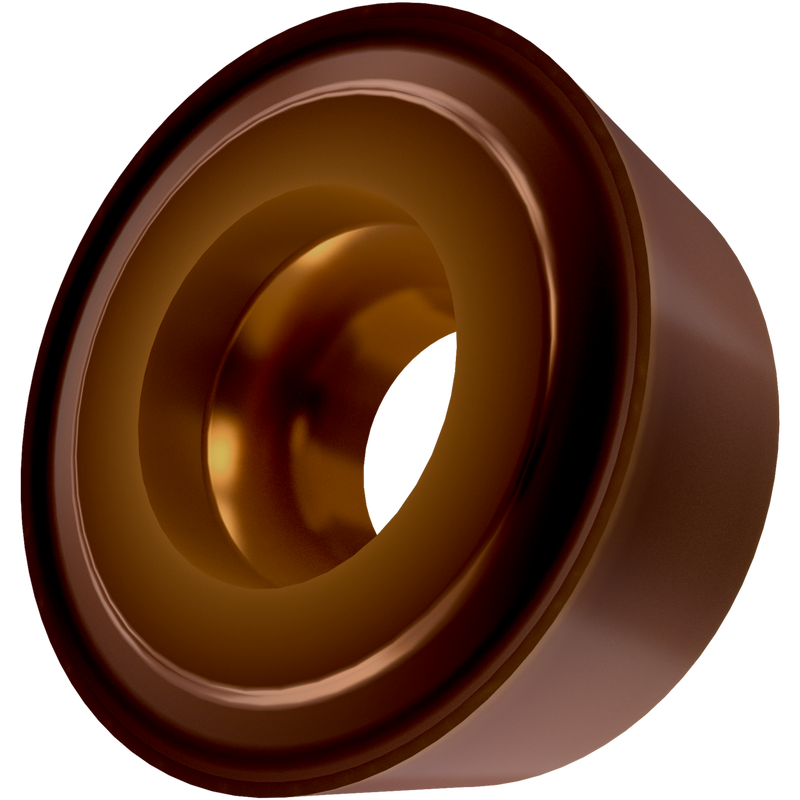

Plaquette positive simple face, ronde, avec un angle de dépouille de 7°, un diamètre de 6 mm, une épaisseur de 2,38 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux UR avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20 -P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0602MOE-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7977232
Product FamilyCMTR
Insert Geometry
Insert DesignCRMTC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Tool Information
Reference Numbers
EDP Number7977232
EAN3603603818439
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
RCMT 0602MOE-UR:T8430 — Line Drawing PDF Download
