RCMT 10T3MOE-FM:T8430
RCMT 10T3MOE-FM:T8430

RCMT 10T3MOE-FM:T8430

UGC DOR7977233
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.54 CAD - $12.54 CAD
$12.54 CAD
$12.54 CAD - $12.54 CAD
$12.54 CAD

Vendu en lots de : 10

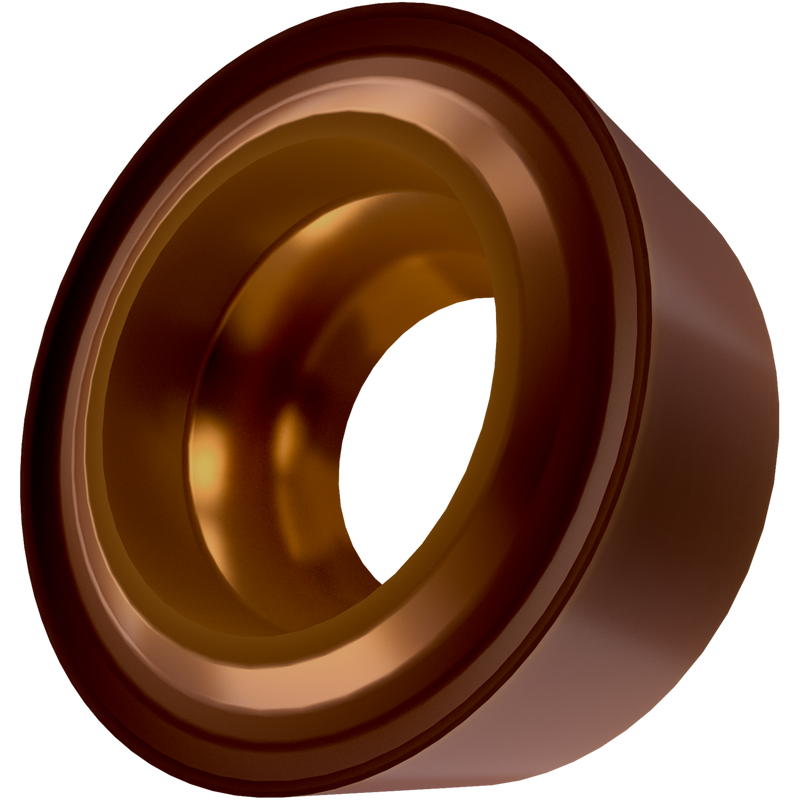

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, diamètre de 10 mm, épaisseur de 3,97 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977233
Product FamilyCMRG
Insert Geometry
Insert DesignCMRC
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number7977233
EAN3603603818446
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
RCMT 10T3MOE-FM:T8430 — Line Drawing PDF Download
