SCMT 432-RM3:T8430
SCMT 432-RM3:T8430

SCMT 432-RM3:T8430

UGC DOR7977243
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.57 CAD - $19.57 CAD
$19.57 CAD
$19.57 CAD - $19.57 CAD
$19.57 CAD

Vendu en lots de : 10

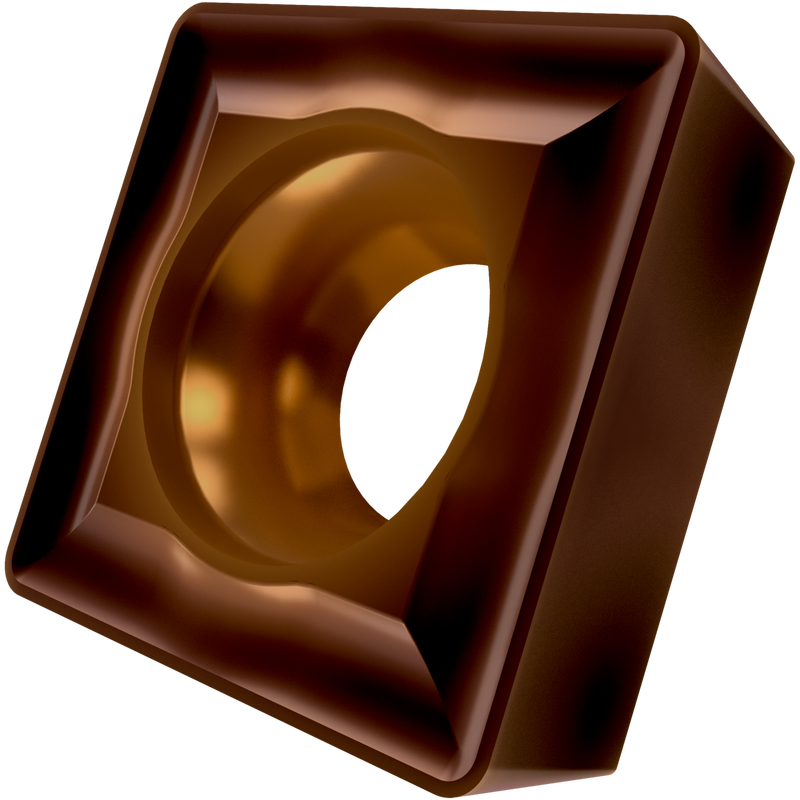

Plaquette positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7mm, épaisseur de 4,76mm, rayon de bec de 0,8mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM3 avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-RM3:T8430
Product Name (ISO)SCMT 120408E-RM3:T8430
GradeT8430
Chipbreaker (CBMD)RM3
Product Number7977243
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977243
EAN3603603818545
File Type Download

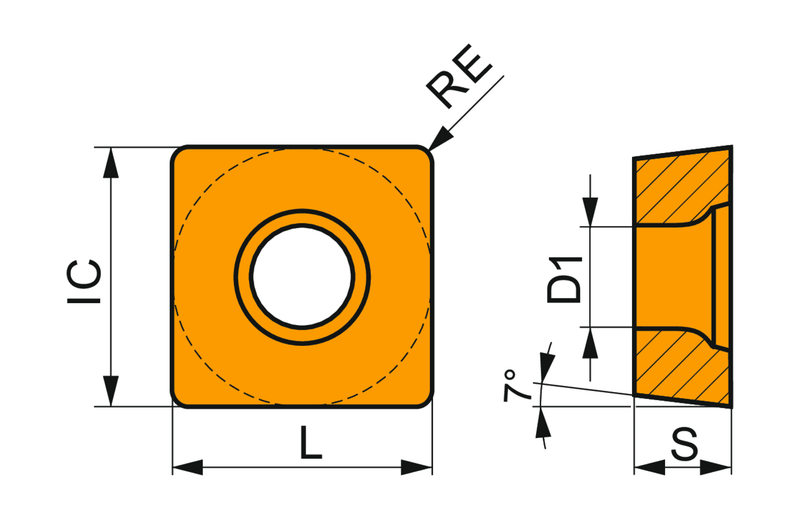

SCMT 432-RM3:T8430 — Line Drawing PDF Download
