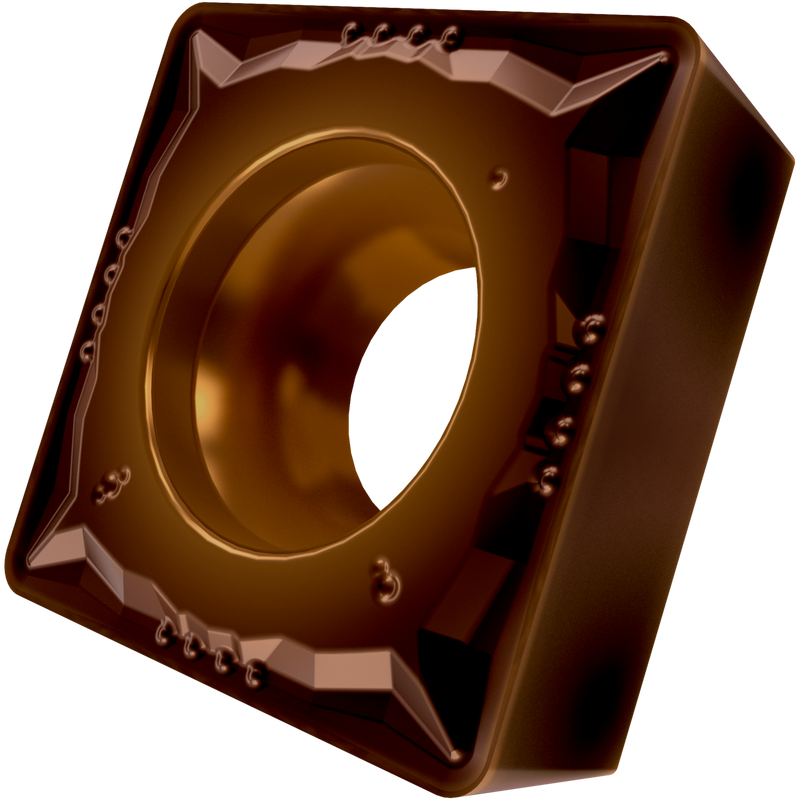

SCMT 433-FM:T8430
SCMT 433-FM:T8430

SCMT 433-FM:T8430

UGC DOR7977244
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.57 CAD - $19.57 CAD
$19.57 CAD
$19.57 CAD - $19.57 CAD
$19.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 1,2 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM à arêtes vives arrondies, en qualité T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage de finition à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 433-FM:T8430
Product Name (ISO)SCMT 120412E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977244
Product FamilySCMT
Insert Geometry
Insert DesignCGST
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977244
EAN3603603818552
File Type Download
SCMT 433-FM:T8430 — Line Drawing PDF Download
