TCMT 1.21.21-FF2:T8430
TCMT 1.21.21-FF2:T8430

TCMT 1.21.21-FF2:T8430

UGC DOR7977251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.36 CAD - $9.36 CAD
$9.36 CAD
$9.36 CAD - $9.36 CAD
$9.36 CAD

Vendu en lots de : 10

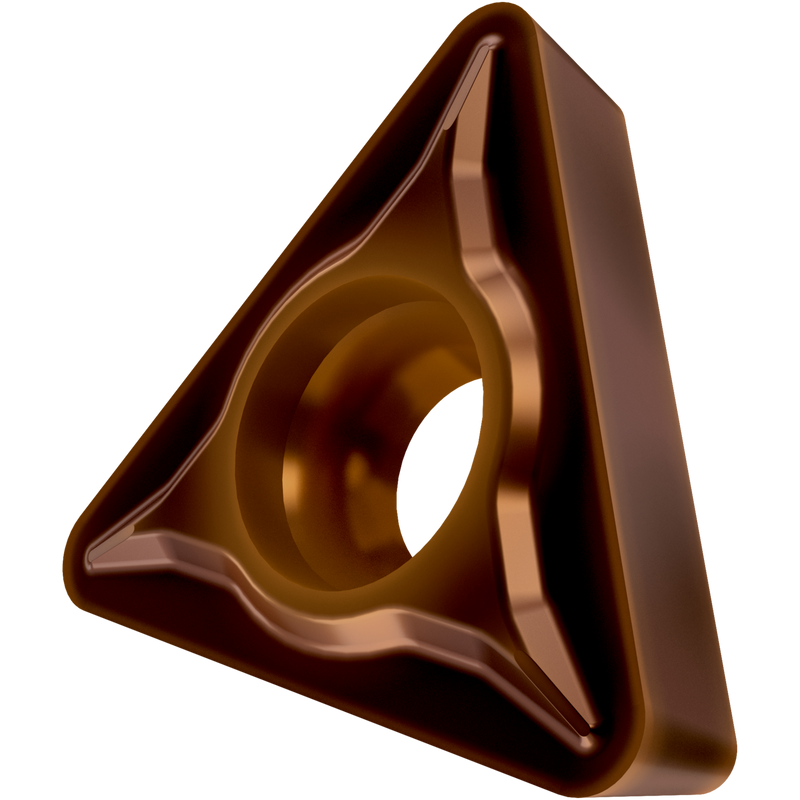

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3,97 mm, épaisseur de 1,98 mm, rayon de bec de 0,4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF2 à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD, dans la plage ISO P20 - P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.21.21-FF2:T8430
Product Name (ISO)TCMT 06T104E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977251
Product FamilyTCMT

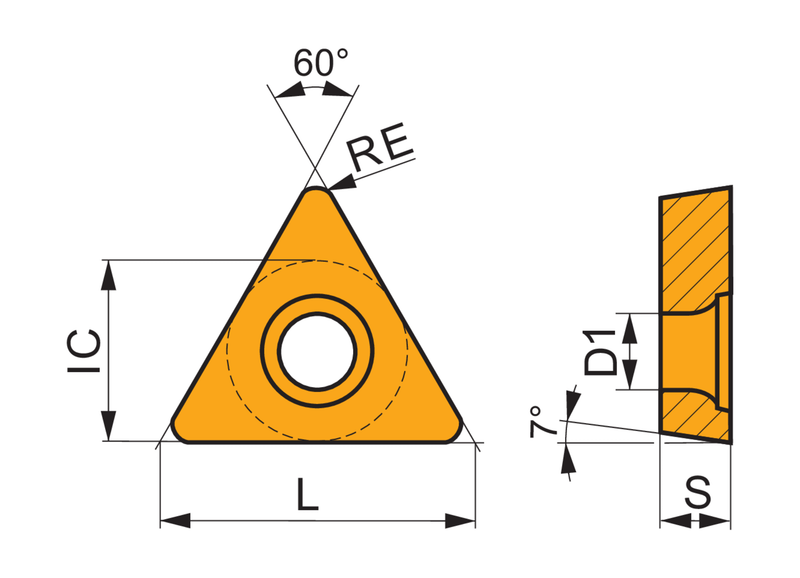

Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.078"
Insert Thickness — mm (S)1.98 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977251
EAN3603603818620
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TCMT 1.21.21-FF2:T8430 — Line Drawing PDF Download
