TCMT 32.52-FF2:T8430
TCMT 32.52-FF2:T8430

TCMT 32.52-FF2:T8430

UGC DOR7977256
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.57 CAD - $14.57 CAD
$14.57 CAD
$14.57 CAD - $14.57 CAD
$14.57 CAD

Vendu en lots de : 10

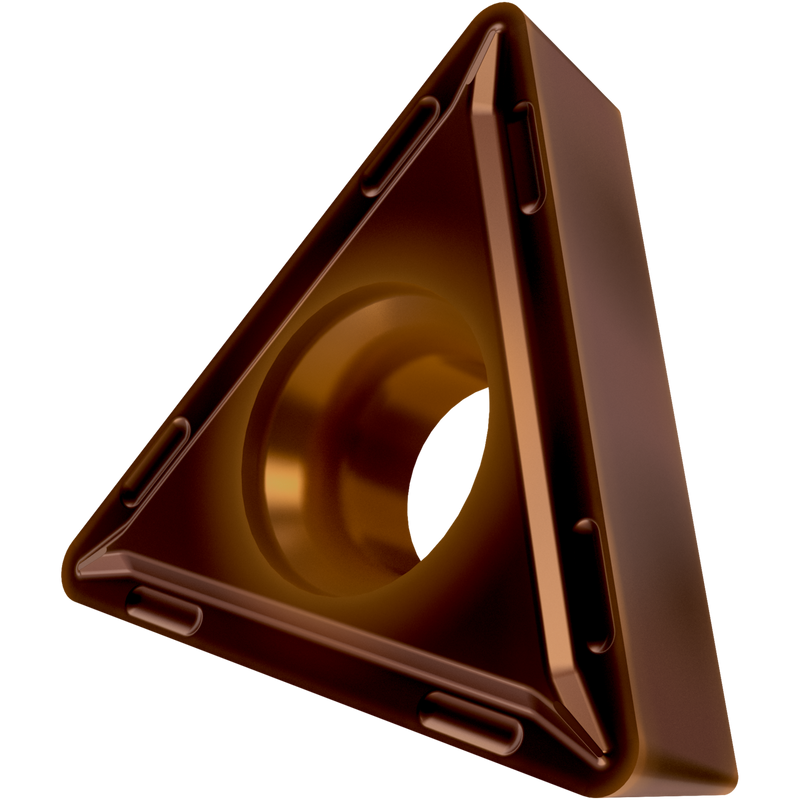

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,8 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-FF2:T8430
Product Name (ISO)TCMT 16T308E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977256
Product FamilyCMTC
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977256
EAN3603603818675
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage possible
File Type Download

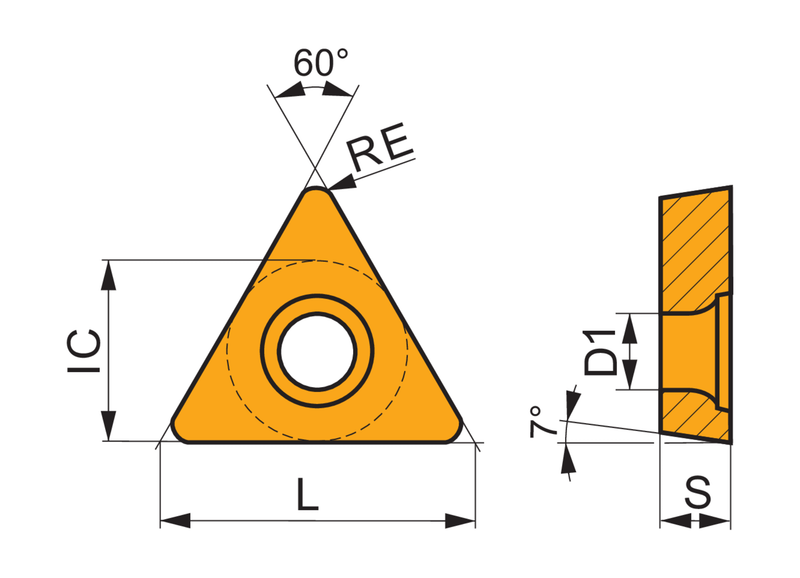

TCMT 32.52-FF2:T8430 — Line Drawing PDF Download
