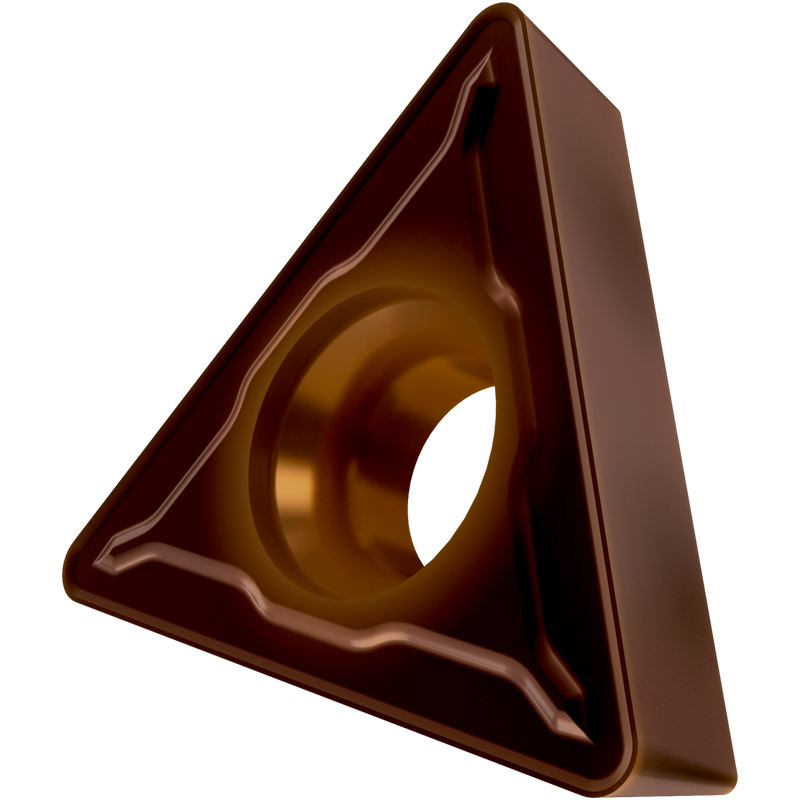

TCMT 32.52-FM2:T8430
TCMT 32.52-FM2:T8430

TCMT 32.52-FM2:T8430

UGC DOR7977257
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.57 CAD - $14.57 CAD
$14.57 CAD
$14.57 CAD - $14.57 CAD
$14.57 CAD

Vendu en lots de : 10

Plaquette positive simple face pour le tournage, triangulaire avec un angle de dépouille de 7°, diamètre du cercle inscrit de 9,525mm, épaisseur de 3,97mm, rayon de bec de 0,8mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-FM2:T8430
Product Name (ISO)TCMT 16T308E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977257
Product FamilyCTRM
Insert Geometry
Insert DesignCMCT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977257
EAN3603603818682
File Type Download
TCMT 32.52-FM2:T8430 — Line Drawing PDF Download
