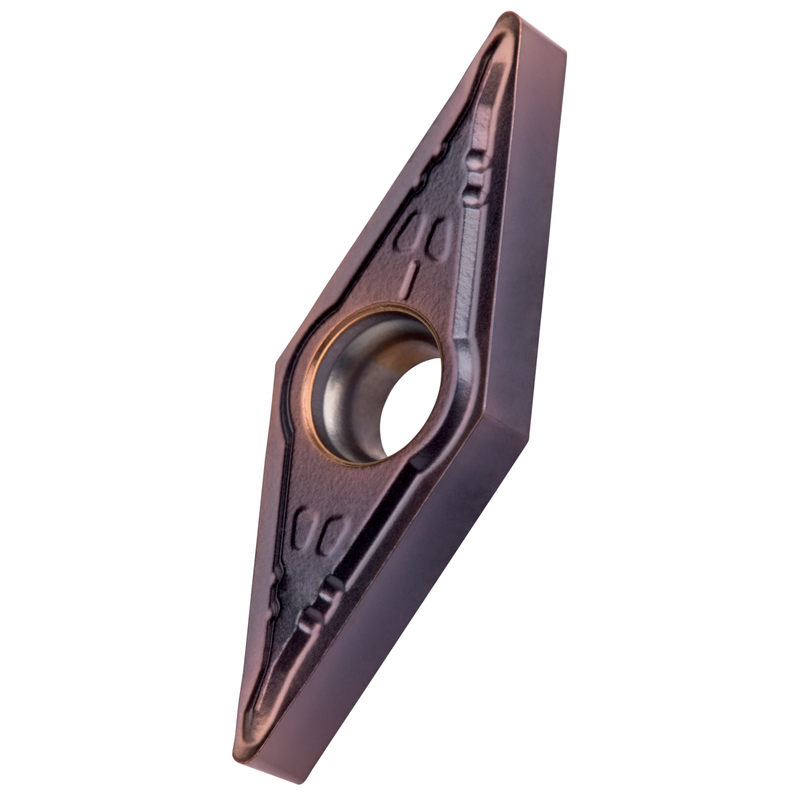

VBMT 21.51-UR:T8430
VBMT 21.51-UR:T8430

VBMT 21.51-UR:T8430

UGC DOR7977260
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 6,35mm, épaisseur 2,38mm, rayon de bec 0,4mm, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR à arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage des aciers de finition à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 21.51-UR:T8430
Product Name (ISO)VBMT 110204E-UR:T8430
GradeT8430
Chipbreaker (CBMD)VOUS
Product Number7977260
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977260
EAN3603603818712
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
VBMT 21.51-UR:T8430 — Line Drawing PDF Download
