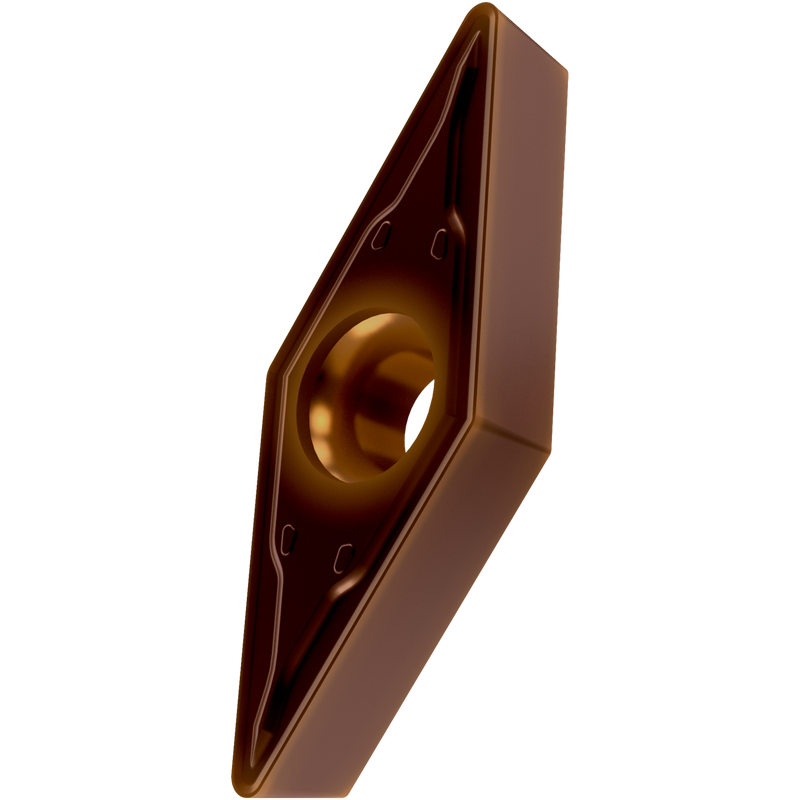

VBMT 331-FM2:T8430
VBMT 331-FM2:T8430

VBMT 331-FM2:T8430

UGC DOR7977262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.79 CAD - $22.79 CAD
$22.79 CAD
$22.79 CAD - $22.79 CAD
$22.79 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 9,525mm, épaisseur de 4,76mm, rayon de bec de 0,4mm, précision de positionnement selon ISO-tolérance classe-M, brise-copeaux FM2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 331-FM2:T8430
Product Name (ISO)VBMT 160404E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977262
Product FamilyVBMT
Insert Geometry
Insert DesignMVBT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977262
EAN3603603818736
File Type Download
VBMT 331-FM2:T8430 — Line Drawing PDF Download
