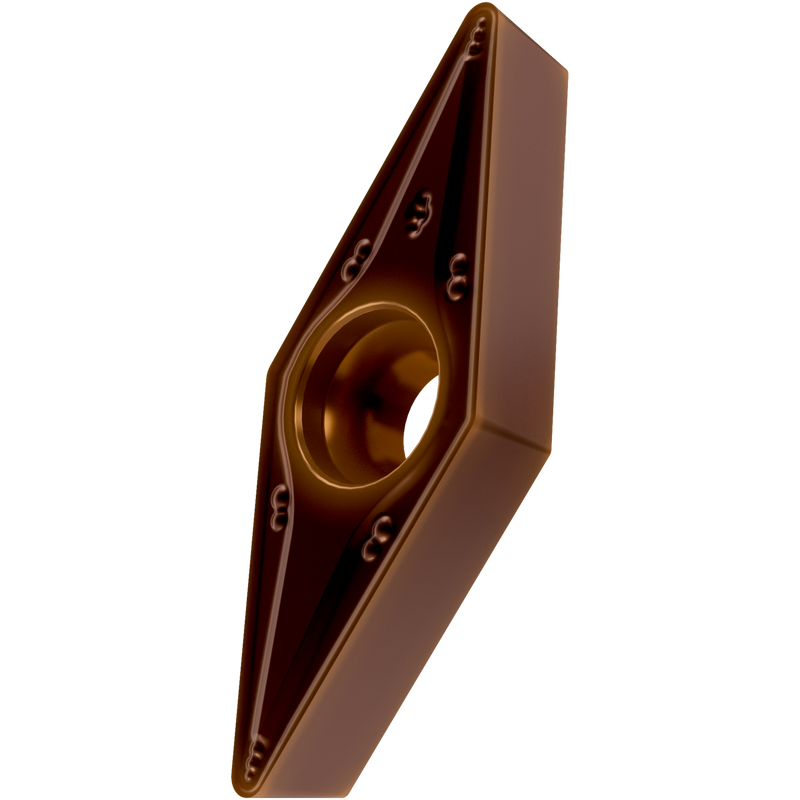

VBMT 333-RM:T8430
VBMT 333-RM:T8430

VBMT 333-RM:T8430

UGC DOR7977268
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.79 CAD - $22.79 CAD
$22.79 CAD
$22.79 CAD - $22.79 CAD
$22.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 4,76 mm, rayon de bec de 1,2 mm, précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 333-RM:T8430
Product Name (ISO)VBMT 160412E-RM:T8430
GradeT8430
Chipbreaker (CBMD)RM
Product Number7977268
Product FamilyBVCM
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977268
EAN3603603818798
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
VBMT 333-RM:T8430 — Line Drawing PDF Download
