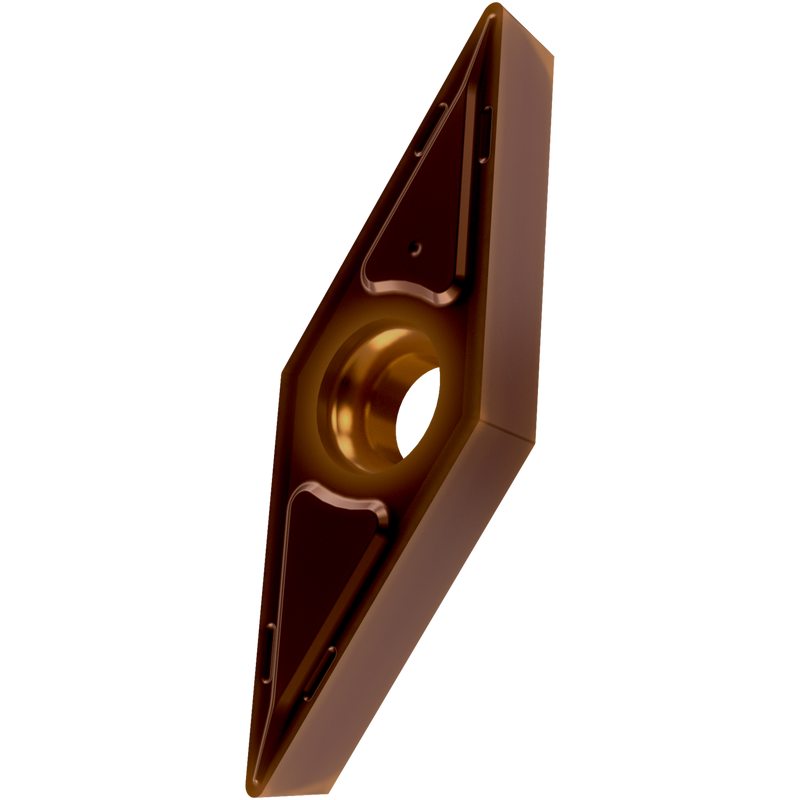

VCGT 2.520.5-FF2:T8430
VCGT 2.520.5-FF2:T8430

VCGT 2.520.5-FF2:T8430

UGC DOR7977272
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.40 CAD - $21.40 CAD
$21.40 CAD
$21.40 CAD - $21.40 CAD
$21.40 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 35° avec dépouille de 7°, diamètre du cercle inscrit de 7,94 mm, épaisseur de 3,18 mm, rayon de pointe de 0,2 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux FF2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5-FF2:T8430
Product Name (ISO)VCGT 130302E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977272
Product FamilyVCGT
Insert Geometry
Insert DesignTVCG
Insert Shape Code (SC)V - angle inclus rhombique de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Tool Information
Reference Numbers
EDP Number7977272
EAN3603603818835
File Type Download
VCGT 2.520.5-FF2:T8430 — Line Drawing PDF Download
