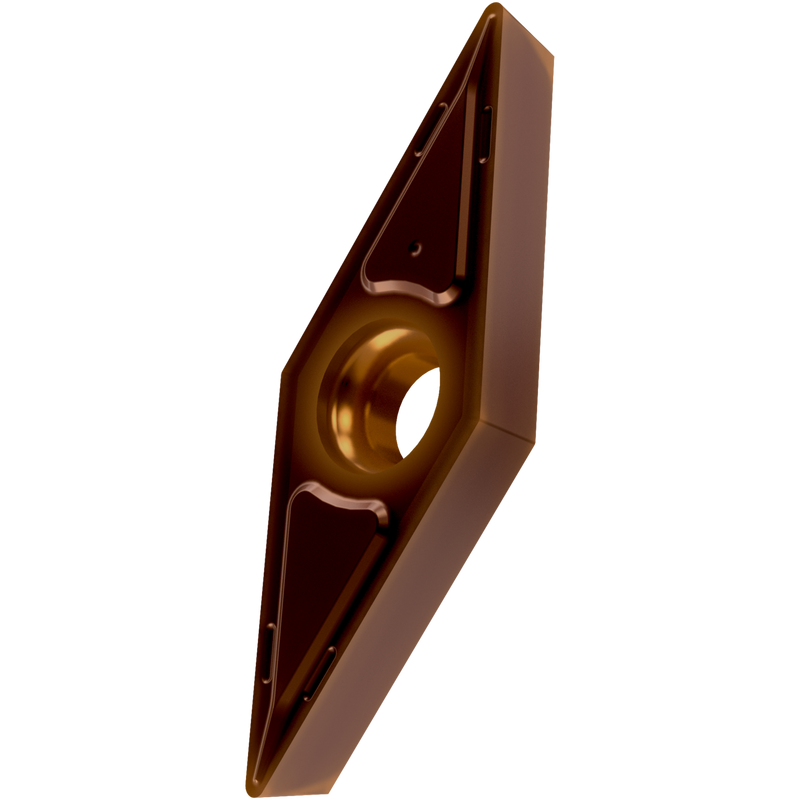

VCGT 2.521-FF2:T8430
VCGT 2.521-FF2:T8430

VCGT 2.521-FF2:T8430

UGC DOR7977273
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette positive simple face à 35° en forme de losange avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 7,94 mm, une épaisseur de 3,18 mm, un rayon de bec de 0,4 mm, une précision de positionnement conforme à la classe de tolérance ISO-G, un brise-copeaux FF2 avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans la gamme ISO P20 -P40, pour l'usinage de finition à semi-finition des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-FF2:T8430
Product Name (ISO)VCGT 130304E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977273
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977273
EAN3603603818842
File Type Download
VCGT 2.521-FF2:T8430 — Line Drawing PDF Download
