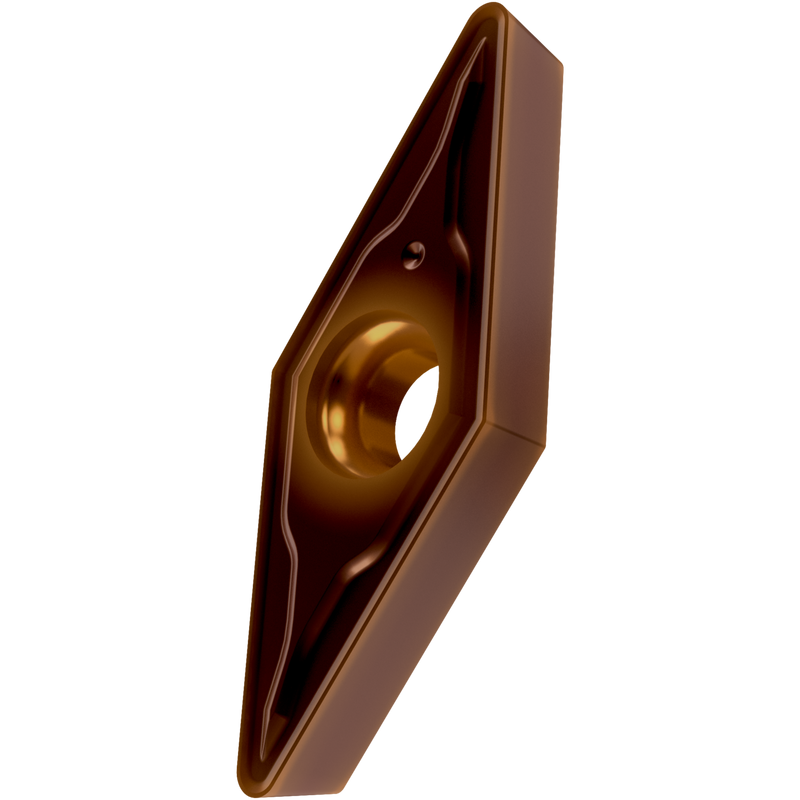

VCGT 2.522-FM2:T8430
VCGT 2.522-FM2:T8430

VCGT 2.522-FM2:T8430

UGC DOR7977274
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 7,94mm, épaisseur 3,18mm, rayon de pointe 0,8mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux FM2 à arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-FM2:T8430
Product Name (ISO)VCGT 130308E-FM2:T8430
GradeT8430
Chipbreaker (CBMD)FM2
Product Number7977274
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977274
EAN3603603818859
File Type Download
VCGT 2.522-FM2:T8430 — Line Drawing PDF Download
