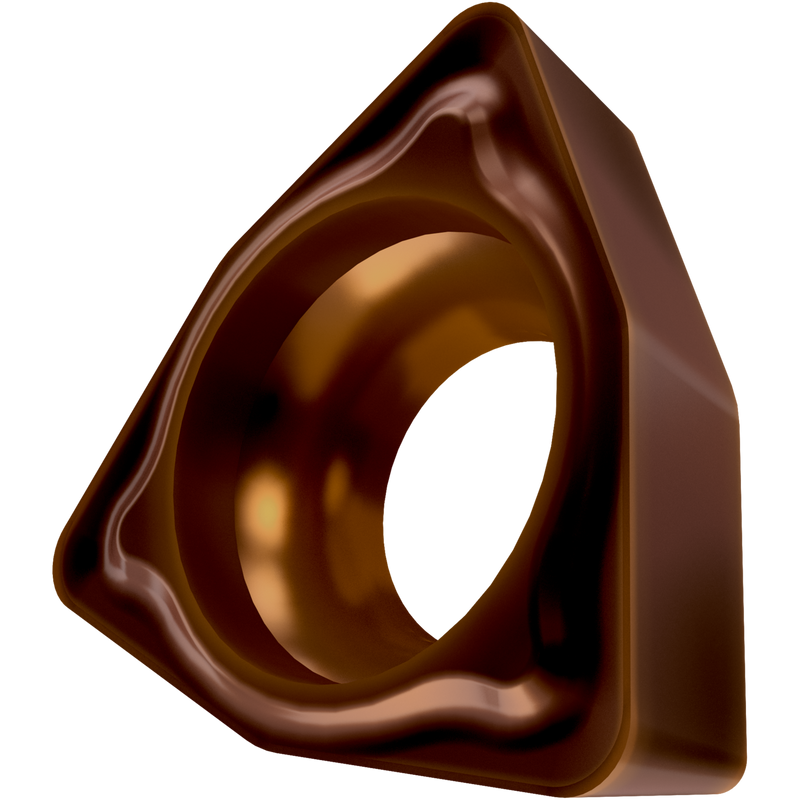

WCGT 1.211-FF2:T8430
WCGT 1.211-FF2:T8430

WCGT 1.211-FF2:T8430

UGC DOR7977278
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.43 CAD - $15.43 CAD
$15.43 CAD
$15.43 CAD - $15.43 CAD
$15.43 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigonale 80° avec dépouille 7°, diamètre du cercle inscrit de 3,97mm, épaisseur de 1,59mm, rayon de bec de 0,4mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux FF2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20 -P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 1.211-FF2:T8430
Product Name (ISO)WCGT 020104E-FF2:T8430
GradeT8430
Chipbreaker (CBMD)FF2
Product Number7977278
Product FamilySMCT
Insert Geometry
Insert DesignCMGT
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.063"
Insert Thickness — mm (S)1.59 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977278
EAN3603603818897
File Type Download
WCGT 1.211-FF2:T8430 — Line Drawing PDF Download
