WCMT 32.51-FM:T8430
WCMT 32.51-FM:T8430

WCMT 32.51-FM:T8430

UGC DOR7977279
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.14 CAD - $19.14 CAD
$19.14 CAD
$19.14 CAD - $19.14 CAD
$19.14 CAD

Vendu en lots de : 10

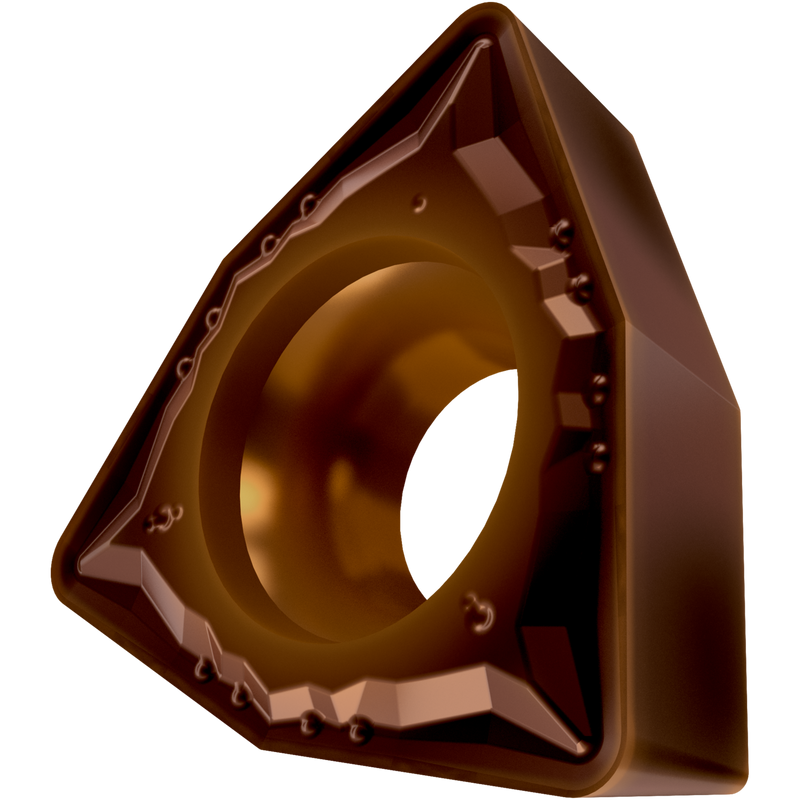

Plaquette de tournage positive simple face, trigon 80° avec dépouille de 7°, diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,97 mm, rayon de bec de 0,4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM à arêtes vives, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 32.51-FM:T8430
Product Name (ISO)WCMT 06T304E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977279
Product FamilyWCMT
Insert Geometry
Insert DesignWCMT
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977279
EAN3603603818903
File Type Download
WCMT 32.51-FM:T8430 — Line Drawing PDF Download
