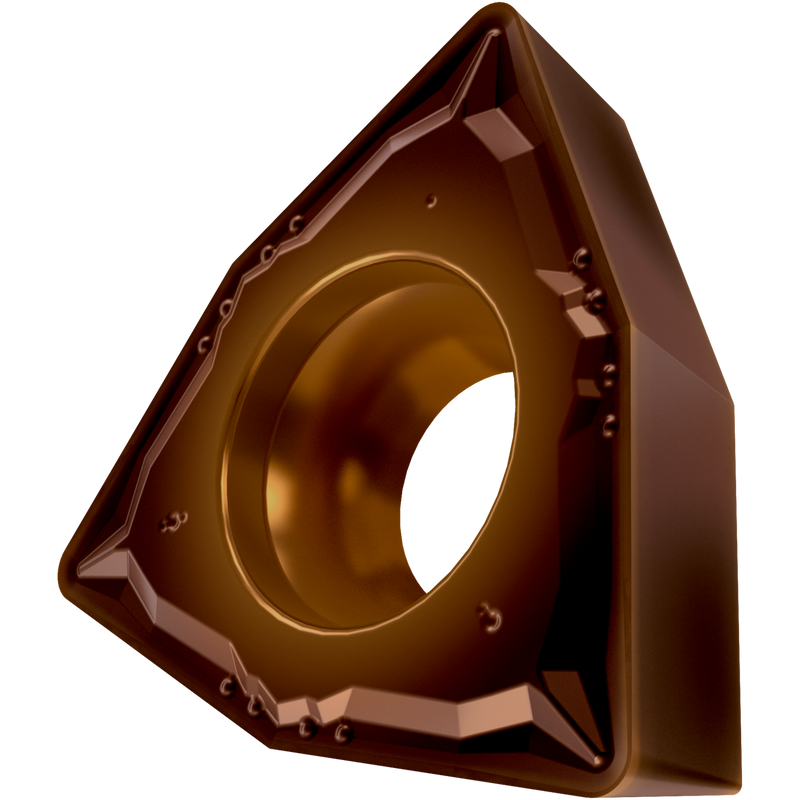

WCMT 432-FM:T8430
WCMT 432-FM:T8430

WCMT 432-FM:T8430

UGC DOR7977282
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.76 CAD - $23.76 CAD
$23.76 CAD
$23.76 CAD - $23.76 CAD
$23.76 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigonale 80° avec un dépouille de 7°, diamètre du cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 - P40 et M20 - M35, pour l'usinage fin à moyen des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WCMT 432-FM:T8430
Product Name (ISO)WCMT 080408E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977282
Product FamilyWCMT
Insert Geometry
Insert DesignCMTF
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977282
EAN3603603818934
File Type Download
WCMT 432-FM:T8430 — Line Drawing PDF Download
