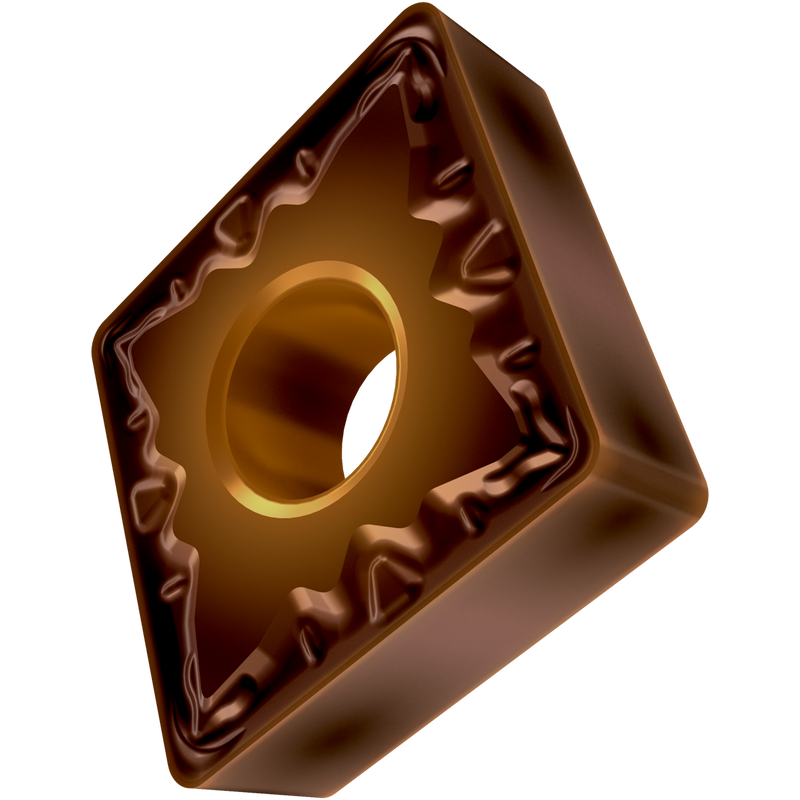

CNMG 321-FM:T8430
CNMG 321-FM:T8430

CNMG 321-FM:T8430

UGC DOR7977310
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.50 CAD - $9.50 CAD
$9.50 CAD
$9.50 CAD - $9.50 CAD
$9.50 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec un diamètre de cercle inscrit de 9,525 mm, une épaisseur de 3,18 mm, un rayon de bec de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux FM avec des arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO P20-P40, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 321-FM:T8430
Product Name (ISO)CNMG 090304E-FM:T8430
GradeT8430
Chipbreaker (CBMD)FM
Product Number7977310
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977310
EAN3603603818965
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 321-FM:T8430 — Line Drawing PDF Download
