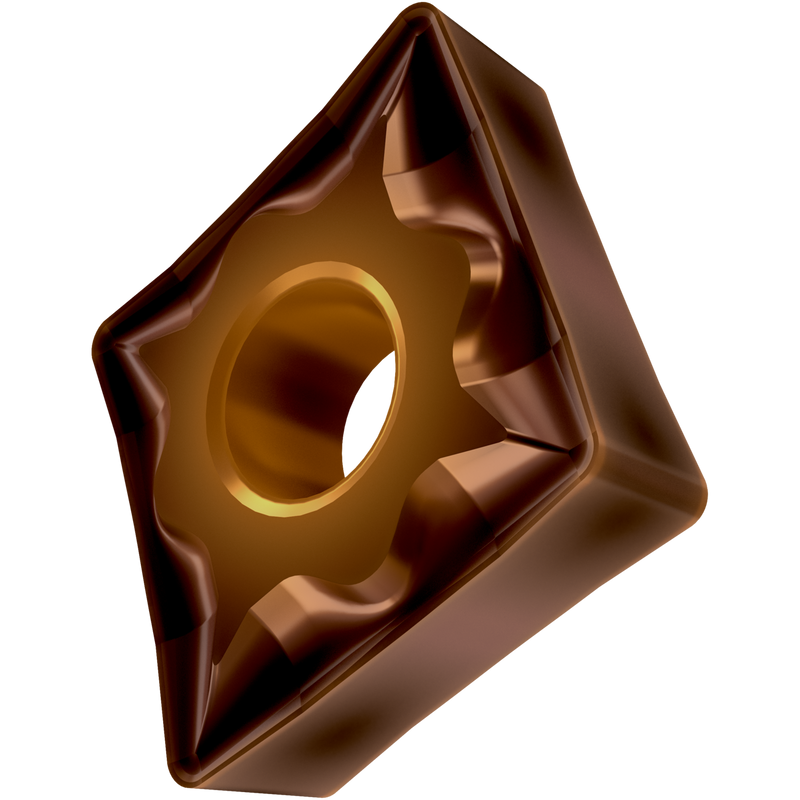

CNMG 321-NF:T8430
CNMG 321-NF:T8430

CNMG 321-NF:T8430

UGC DOR7977311
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.50 CAD - $9.50 CAD
$9.50 CAD
$9.50 CAD - $9.50 CAD
$9.50 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre du cercle inscrit de 9,525 mm, épaisseur de 3,18 mm, rayon de bec de 0,4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NF avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 321-NF:T8430
Product Name (ISO)CNMG 090304E-NF:T8430
GradeT8430
Chipbreaker (CBMD)NF
Product Number7977311
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7977311
EAN3603603818972
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
