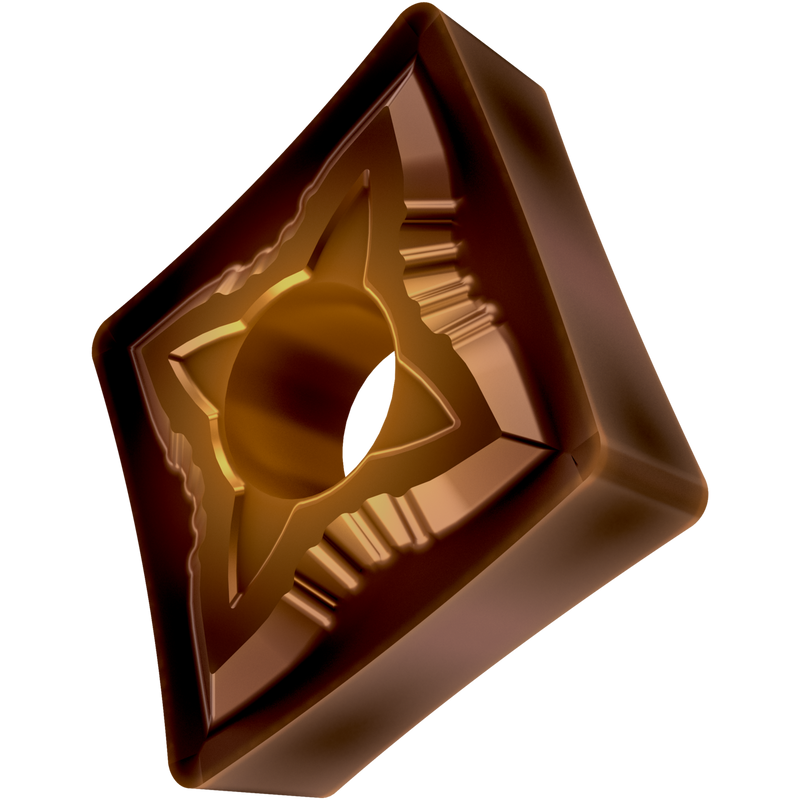

CNMG 433-SF:T8430
CNMG 433-SF:T8430

CNMG 433-SF:T8430

UGC DOR7977320
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double-face à 80° rhomboïde avec un diamètre de cercle inscrit de 12,7 mm, une épaisseur de 4,76 mm, un rayon de pointe de 1,2 mm, une précision de positionnement selon la classe de tolérance ISO-M, un brise-copeaux SF avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grain fin revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage fin à moyen des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-SF:T8430
Product Name (ISO)CNMG 120412E-SF:T8430
GradeT8430
Chipbreaker (CBMD)SF
Product Number7977320
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle compris rhomboédrique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number7977320
EAN3603603819061
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
CNMG 433-SF:T8430 — Line Drawing PDF Download
