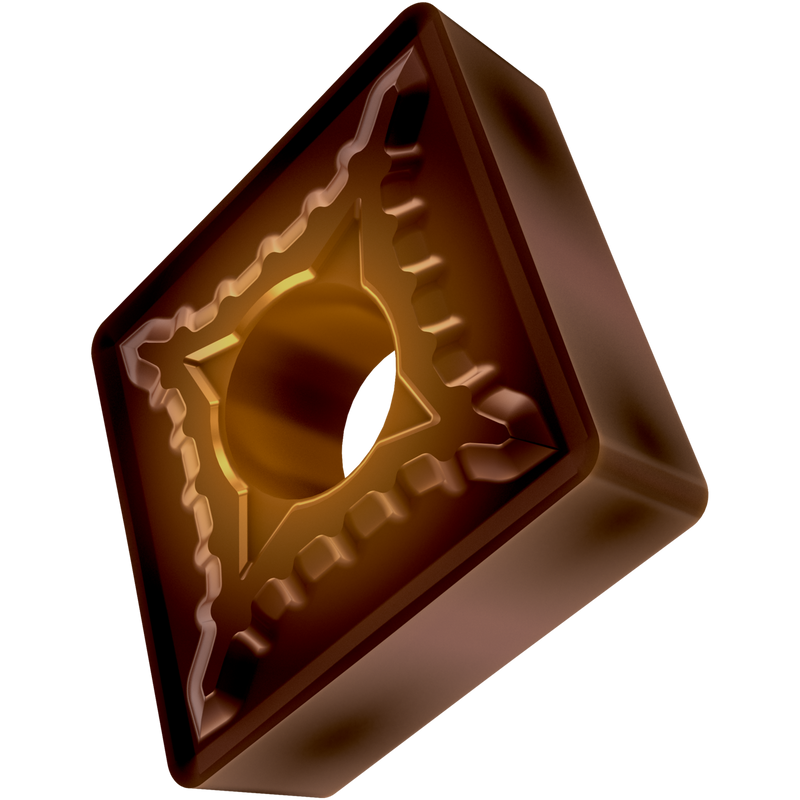

CNMG 542-SM:T8430
CNMG 542-SM:T8430

CNMG 542-SM:T8430

UGC DOR7977324
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

Plaquette négative double face à 80° rhomboïde avec un diamètre de cercle inscrit de 15,575 mm, 6,35 mm d'épaisseur, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20-P40 et M20-M35, pour l'usinage léger à lourd des aciers et aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 542-SM:T8430
Product Name (ISO)CNMG 160608E-SM:T8430
GradeT8430
Chipbreaker (CBMD)SM
Product Number7977324
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle fermé 80° rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977324
EAN3603603819108
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage possible
H — Hardened Materials Usage possible
File Type Download
CNMG 542-SM:T8430 — Line Drawing PDF Download
