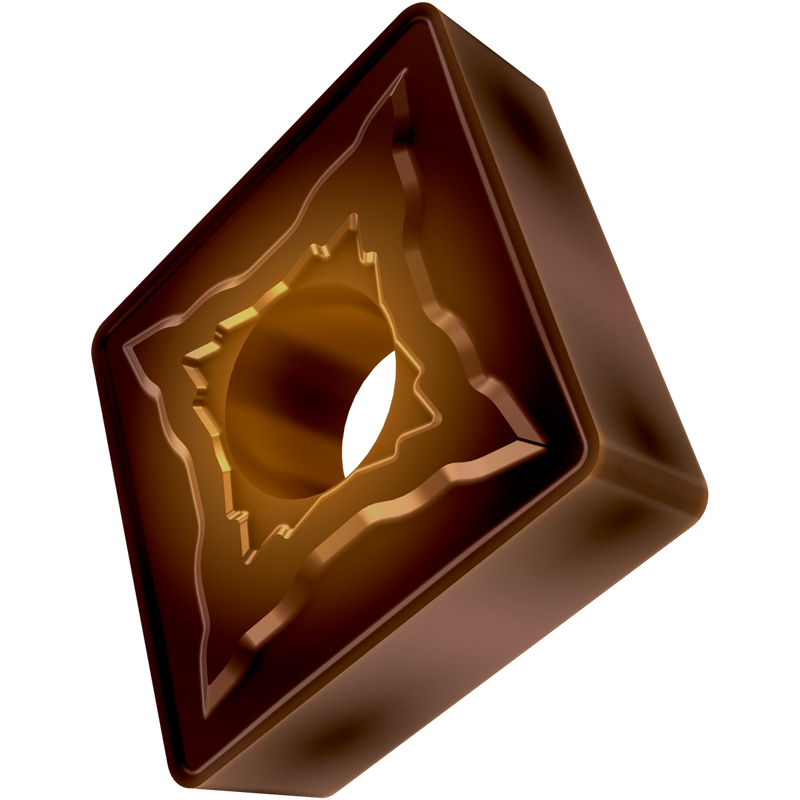

CNMG 544-NMR:T8430
CNMG 544-NMR:T8430

CNMG 544-NMR:T8430

UGC DOR7977327
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

Plaquette double face négative, rhomboïde 80° avec diamètre de cercle inscrit de 15,575mm, 6,35mm d'épaisseur, rayon de bec de 1,6mm, précision de plaquage selon la classe de tolérance ISO-M, brise-copeaux NMR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage léger à lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 544-NMR:T8430
Product Name (ISO)CNMG 160616E-NMR:T8430
GradeT8430
Chipbreaker (CBMD)RMN
Product Number7977327
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977327
EAN3603603819139
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
CNMG 544-NMR:T8430 — Line Drawing PDF Download
