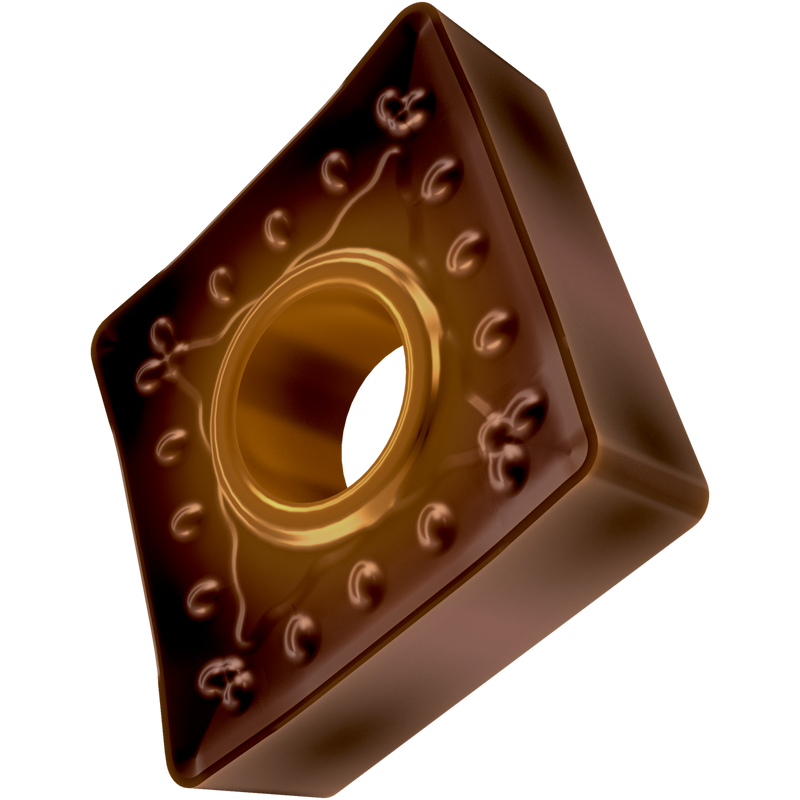

CNMM 432-OR:T8430
CNMM 432-OR:T8430

CNMM 432-OR:T8430

UGC DOR7977332
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette amovible négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur, rayon de bec de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux OR avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO P20-P40, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 432-OR:T8430
Product Name (ISO)CNMM 120408E-OR:T8430
GradeT8430
Chipbreaker (CBMD)OU_
Product Number7977332
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977332
EAN3603603819184
File Type Download
CNMM 432-OR:T8430 — Line Drawing PDF Download
