CNMM 542-NR2:T8430
CNMM 542-NR2:T8430

CNMM 542-NR2:T8430

UGC DOR7977335
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.93 CAD - $22.93 CAD
$22.93 CAD
$22.93 CAD - $22.93 CAD
$22.93 CAD

Vendu en lots de : 10

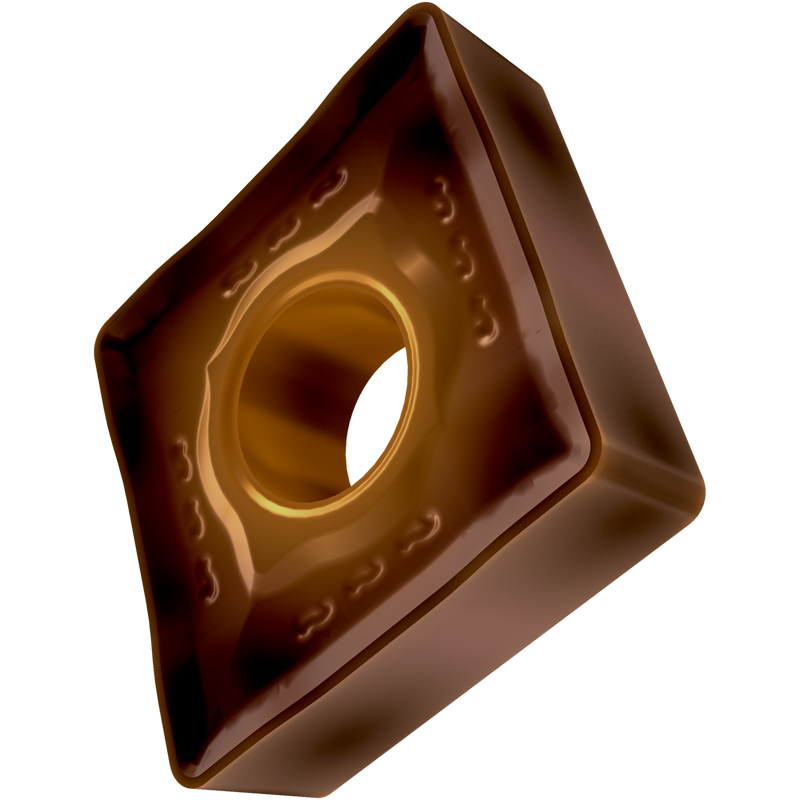

Plaquette négative double face à 80° rhomboïde avec diamètre du cercle inscrit de 15.575mm, 6.35mm d'épaisseur, rayon de bec de 0.8mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2 avec arêtes vives arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 542-NR2:T8430
Product Name (ISO)CNMM 160608E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977335
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - Angle de 80° inclus, rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7977335
EAN3603603819214
File Type Download
CNMM 542-NR2:T8430 — Line Drawing PDF Download
