CNMM 644-NR2:T8430
CNMM 644-NR2:T8430

CNMM 644-NR2:T8430

UGC DOR7977340
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.14 CAD - $31.14 CAD
$31.14 CAD
$31.14 CAD - $31.14 CAD
$31.14 CAD

Vendu en lots de : 10

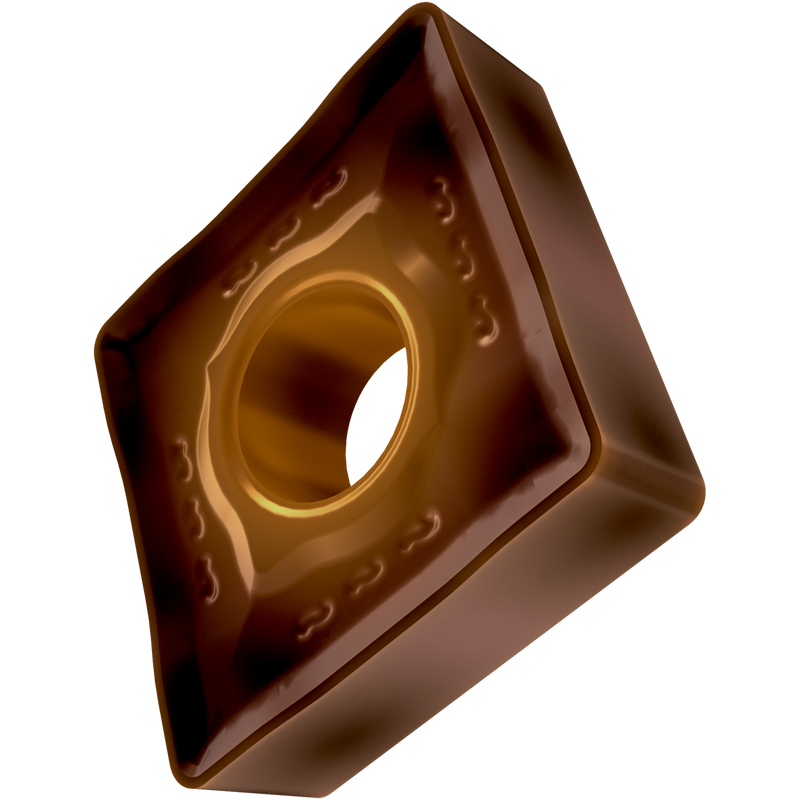

Plaquette négative double face, rhomboïde à 80° avec diamètre de cercle inscrit de 19,05 mm, 6,35 mm d'épaisseur, rayon de bec de 1,6 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2 avec arêtes de coupe arrondies, en nuance T8430, un carbure WC-Co à grains fins revêtu PVD dans les plages ISO P20 -P40 et M20 -M35, pour l'usinage moyen à très lourd des aciers et des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 644-NR2:T8430
Product Name (ISO)CNMM 190616E-NR2:T8430
GradeT8430
Chipbreaker (CBMD)NR2
Product Number7977340
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number7977340
EAN3603603819269
File Type Download
CNMM 644-NR2:T8430 — Line Drawing PDF Download
